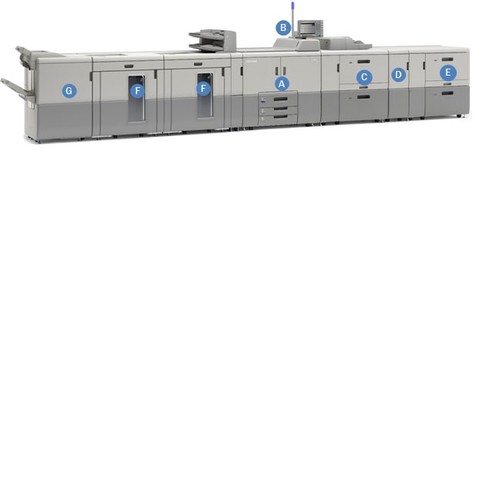

Ricoh Pro 8110e/ 8120e

Ricoh Pro 8110e/ 8120e

Take a leap forward in productivity



When you have lots of information to manage, the right device can help you quickly capture, print and share it with the people who need it. Count on the RICOH Pro 8110e/8120e black-and-white printers to help you:
  • Accept print-on-demand projects with confidence.
  • Impress your customers with dazzling 1200 x 4800 dpi quality.
  • Reduce downtime with the TCRU program.
  • Print checks for financial services customers with MICR configuration.
  • Manage multiple jobs easily with the optional EFI Fiery® controller.
  • Copy
  • Print
  • Scan
  • Characteristics

    General Features

    • Promote accuracy from beginning to end
      Some information, like bank statements and insurance explanations of benefits (EOBs), has to be printed accurately — no ifs, ands or buts about it. With the Pro 8110e/8120e, you can accept data from mainframes and count on genuine Intelligent Printer Data Stream™ (IPDS™) to keep track of every page. If there is an error, IPDS recovers and completes jobs automatically — saving you time and money.
    • Make paper handling virtually effortless
      With up to 9 paper pick points and 12,650 sheets of paper available when equipped with optional large capacity trays, the Pro 8110e/8120e will keep running and provide multiple media choices for all of your print needs. Additionally, our unique paper library lets you change paper settings with a touch on the operation panel. Any paper profile you select contains the appropriate machine settings, so you're good to go.
    • Finish in style
      Give your printed pages the finishing touch either inline or offline: Opt for one or two stacker carts that you can roll to the finishing area. Punch holes in sheets and tabs with the GBC Ultra. Make booklets of up to 50 sheets (approximately 200 pages) with the Plockmatic Pro 50/35.
    • Connect third-party finishing equipment
      With the optional interface box, you can move information through your shop faster than ever. We can configure your Pro 8110e/8120e to connect to high-speed industrial equipment from C.P. Bourg and others. With inline finishing, you're "wired" for speed and throughput.
    • Be known for first-class quality
      Grab and keep readers' attention with communications that stand out. Our Vertical Cavity Surface Emitting Laser (VCSEL) technology uses 40 laser beams to replicate images and text up to 1200 x 4800 dpi. In addition, the new pulverized toner enhances image quality by providing smooth solids and halftones.
    • Become a media maven
      Many devices limit your media choices. The RICOH Pro 8110e/8120e lets you be creative and target diverse audiences with the right paper for the job. The optional RT5100 LCIT uses vacuum technology to accurately feed a wide variety of media types and weights. Print on media up to 350 gsm, and use textured, coated or specialty papers in sizes up to 13" x 19.2". And with the magnetic ink character recognition (MICR) option, you can produce high-speed, high-quality checks, image replacement documents (IRD and CRD) and other materials that require MICR printing.
    • Simplify print tasks
      Every minute counts when you have lots of jobs to get out the door. The more setup time you can save, the better. Using the Pro 8110e/8120e, you can automate routine tasks and bypass unnecessary steps. The full-color control panel presents large, easy-to-understand icons and preconfigured print settings. You can preview thumbnail images before you print so you won't waste time, energy and paper.
    • Worry less, finish more
      One manual error can mess up your schedule and cost you a lot of money. Instead of worrying about mistakes, sail through jobs with automatic stapling, hole punching, saddle stitching, decurling, cover insertion and more. Turn out professional-looking booklets, reports, brochures, direct mail and other communications — all inline and hands free.
  • Specifications

    System Specifications

    Print Resolution   1200 x 4800 dpi via VCSEL Output Speed

    Output Speed   Pro 8110e: 110 ppm
    Pro 8120e: 135 ppm

    Paper Capacity   Tray 1: 1,100 x 2
    Trays 2 – 3: 550 x 2
    Total Standard / Max. Capacity: 3,300 / 12,650 sheets

    Power Requirements   208 - 240V, 50/60Hz (dedicated)

    Dimensions (W x D x H)   52" x 43.3" x 57.5" (1,320 x 1,100 x 1,460mm)

    Weight   915 lbs. (415 kg)

    Full Specifications   Download Full List
  • Accessories

    RT5100 Vacuum Feed Large Capacity Input Tray (LCIT)

    Paper Capacity   2,200 sheets (20 lb. Bond, 80 g/m2) per tray; maximum capacity per unit 4,400 sheets (20 lb. Bond, 80 g/m2)

    Paper Size   A5 (LEF) /5.5" x 8.5" – 13" x 19.2"

    Paper Weight   14 lb. Bond – 130 lb. Cover (52.3 –360g/m2)

    Size   41.5" x 28.7" x 39.4" (1054mm x 730mm x 1000mm)

    Weight   484 lbs. (220 kg)


    Vacuum Feed Oversize Tray Type S3

    Paper Capacity   1,100 sheets

    Paper Size   A5 (LEF) /5.5" x 8.5" – 13" x 27.5"

    Paper Weight   14 lb. Bond – 110 lb. Cover (52.3 – 300 g/m2)

    Dimensions   When attached to the LCIT RT5100 the dimensions become 50.8" x 28.7" x 39.4" (1,290 mm x 730 mm x 1,000 mm)


    Bridge Unit for LCIT RT5100 (BU5010)

    Paper Size   Width: 3.94" to 13" (210 mm to 330.2 mm)
    Length: 5.5" to 27.55" (420 mm x 700 mm)

    Paper Weight   14 lb. Bond – 150 lb. Cover (52 – 350 g/m2 )

    Power Source   From LCT RT5100

    Dimensions (WxDxH)   13" x 28.7" x 39.4" (330 mm x 730 mm x 1000 mm)

    Weight   Less than 132 lbs. (60 kg)


    A3/DLT Large Capacity Tray (RT5080)

    Paper Capacity   4,400 sheets

    Paper Size   Up to 13" x 19.2"

    Paper Weight   11 lb. Bond – 110 lb. Cover (40 – 300 g/m2 )

    Dimensions (WxDxH)   34" x 28.7" x 39.4" (865 x 730 x 1000 mm)

    Weight   407.8 lbs. (185 kg)


    A4/LT Large Capacity Tray (RT5070)

    Paper Capacity   5,000 sheets

    Paper Size   8.5" x 11"

    Paper Weight   Trays 4 – 5: 14 lb. Bond - 80 lb. Cover (52 – 216 g/m2 )
    Tray 6: 14 lb. Bond – 90 lb. Index (52 – 163 g/m2 )

    Dimensions (WxDxH)   21.3" x 28.7" x 39.4" (540 x 730 x 1,000 mm)

    Weight   233.7 lbs. (106 kg)


    Multi Bypass Tray Unit (BY5010)

    Paper Capacity   550 sheets

    Paper Size   Up to 13" x 19.2"

    Paper Weight   14 lb. Bond to 80 lb. Cover (52 – 216 g/m2

    Dimensions (WxDxH)   27.2" x 22.1" x 8.3" (690 x 561 x 210 mm)

    Weight   44 lbs. (20 kg)


    A3/DLT Tray Kit (TK5010)

    Paper Capacity   1,000 sheets

    Paper Size   Up to 11" x 17"

    Dimensions (WxDxH)   19.5" x 20.9" x 6.9" (495 x 530 x 175 mm)

    Weight   22 lbs. (10 kg)


    2 Cover Interposer Tray (CI5030)

    Paper Size   5.5" x 5.5" – 13" x 19.2"

    Paper Weight   17 lb. Bond – 110 lb. Index (64 – 216 g/m2 )

    Stack Capacity   200 sheets x 2 trays

    Dimensions (WxDxH)   21.2" x 28.7" x 50.8" (540 x 730 x 1290 mm)

    Weight   165 lbs. (75 kg)


    High Capacity Stacker (SK5030)

    Paper Capacity   5,000 sheets (SRA3, A4, LT size)

    Output Jogger   Standard

    Rollaway Cart   Standard, Optional additional carts available

    Power Consumption   Less than 120W

    Power Supply   120 – 127V, 50/60Hz

    Dimensions (WxDxH)   35.4" x 28.7" x 39.8" (900 mm x 730 mm x 1010 mm

    Weight   Stacker: 264 lbs. (120 kg); Roll Away Cart: 33 lbs. (15 kg)


    3,000-Sheet Finisher with 100-Sheet Stapler (SR5050)

    Capacity (Proof Tray)   250 sheets (8.5" x 11" or smaller)
    50 sheets (8.5" x 14" or larger)

    Capacity (Shift Tray)   8.5" x 11" – 3,000 sheets
    8.5" x 14" – 11" x 17" – 1,500 sheets
    12" x 18" – 13" x 19.2" – 1,000 sheets

    Paper Size   5.5" x 8.5" – 13" x 19.2"

    Paper Weight   Proof Tray: 16 lb. Bond – 80 lb. Cover (52 – 216 g/m2)
    Shift Tray: 14 lb. Bond – 110 lb. Cover (40 – 400 g/m2)

    Output Jogger   Standard

    Staple   8.5" x 11" – 2-100 sheets
    8.5" x 14" – 11" x 17" – 2-50 sheets

    Staple Position   Top, Bottom, 2 Staples, Top Slant

    Dimensions (WxDxH)   39.2" x 28.7" x 44.3" (996 x 730 x 1126 mm)

    Weight   247 lbs. (112 kg)


    2,500-Sheet Booklet Finisher (SR5060)

    Capacity (Proof Tray)   250 sheets (8.5" x 11" or smaller)
    50 sheets (8.5" x 14" or larger)

    Capacity (Shift Tray)   8.5" x 11" – 2,500 sheets
    8.5" x 14" – 11" x 17" – 1,500 sheets
    12" x 18" – 13" x 19.2" – 1,000 sheets

    Paper Size   5.5" x 8.5" – 13" x 19.2"

    Paper Weight   Proof Tray: 16 lb. Bond – 80 lb. Cover (52 – 216 g/m2)
    Shift Tray: 14 lb. Bond – 110 lb. Cover (40 – 400 g/m2)

    Output Jogger   Standard

    Staple   8.5" x 11" – 2-100 sheets
    8.5" x 14" – 11" x 17" – 2-50 sheets

    Staple Position   Top, Bottom, 2 Staples, Top Slant

    Saddle Stitch Staple   8.5" x 11" – 13" x 19.2" – 20 sheets; Center 2 Position

    Dimensions (WxDxH)   39.2" x 28.7" x 44.3" (996 x 730 x 1126 mm)

    Weight   247 lbs. (112 kg)


    Booklet Trimmer (TR5040)

    Trimming Type   One Side Edge

    Trimming Capacity   1 – 20 sheets (2 – 40 pages after folding)

    Paper Size   Up to 13" x 19.2"

    Stack Capacity   Up to 60 sets

    Limitless Stack   Yes

    Dimensions (WxDxH)   43.9" x 23.3" x 21.8"(1,115 x 591 x 555 mm)

    Weight   165 lbs. (75 kg)


    Multi-Folding Unit (FD5020)

    Folding Type   Single Sheet Mode: Z-Fold, Half-Fold/Print inside, Half-Fold/Print outside, Letter Fold-in/ Print inside, Letter Fold-in/Print outside, Letter Fold-out, Double Parallel/Print inside, Double Parallel/Print outside, Gate-Fold/Print inside, Gate-Fold/Print outside

    Multiple Sheets Mode   Half-Fold/Print inside, Half-Fold/Print outside, Letter Fold-in/Print inside, Letter Fold-in/Print outside, Letter Fold-out

    Paper Size   Single Sheet Mode: Z folding: 8.5" x 11" – 12" x 18"; Half folding: 8.5" x 11" – 13" x 19.2"; Letter folding: 8.5" x 11" Multiple Sheets Mode: Double Parallel Folding: 8.5" x 11" – 12" x 18"; Gate Folding: 8.5" x 11" – 12" x 18"; Half Folding: 8.5" x 11" – 13" x 19.2"; Letter Fold-out: 8.5" x 11"; Letter Fold-in: 8.5" x 11"

    Dimensions (WxDxH)   18.5" x 28.7" x 39.4" (470 x 730 x 1,000 mm)

    Weight   203 lbs. (92 kg)


    Ring Binder (RB5020)

    Paper Size   8.5" x 11"/A4

    Paper Weight   17 lb. Bond – 110 lb. Index (64 – 216 g/m2)

    Stack Capacity   Binding Mode: 11 sets;
    Punching Mode: 100 sheets

    Ring Bind Capacity   2 – 100 sheets

    Number of Holes   LTR – 21, A4 – 23

    Ring Supply   Black or White, Up to 50 or 100 sheets

    Tab Stock   Supported

    Dimensions (WxDxH)   34.2" x 28.7" x 39.8" (870 x 730 x 1,010 mm)

    Weight   308 lbs. (140 kg)


    Perfect Binder (GB5010)

    Booklet Size   Width: 201 – 297 mm
    Length: 140 – 216 mm

    Booklet Thickness   Less than 23 mm

    Body Page Capacity   200 sheets

    Cutting Directions   3 Edges, 1 Edge, None

    Paper Weight   Body Pages: 20 – 40 lb. Bond (64 – 163 g/m2)
    Cover Pages: 50 – 100 lb. Cover (90 – 300 g/m2)

    Stack Capacity/Booklet   50 sheets: 13; 100 sheets: 7; 200 sheets: 4

    Interposer Tray Capacity   200 sheets

    Glue Capacity   380 g

    Dimensions (WxDxH)   42.9" x 31.1" x 54.6" (1,090 x 791 x 1,387 mm)

    Weight   770 lbs. (350 kg)


    EB-32 Print Controller

    Fiery System   Fiery FS100 Pro

    Operating System   Windows® 7 Professional for Embedded Systems x64

    CPU   Intel® Pentium® Processor G850 2.90 GHz

    Cores   Dual Core

    Memory   4 GB

    HDD   500 GB

    Optical Media Drive   DVD/CD-RW


    Decurl Unit (DU5030)

    Decurl Function   Three-step pressure adjustment (from operation panel)

    Paper Size   Up to 13" x 19.2"

    Paper Weight   12 lb. Bond – 130 lb. Cover (40 – 350 g/m2)

    Dimensions (WxDxH)   2.8" x 20" x 7.1" (71 x 509 x 181 mm)

    Weight   11 lbs. (5 kg)


    Plockmatic Booklet Maker (PBM350/PBM500)

    Paper Size   8.5" x 11" – 12" x 18"

    Paper Weight   16 lb. Bond – 100 lb. Cover (64 – 300 g/m2)

    Set Size   PBM350 – 2–35 sheets (20 lb. Bond/ 80 g/m2) PBM500 – 2–50 sheets (20 lb. Bond/ 80 g/m2)

    Power Supply   115v, 60Hz

    Dimensions (WxDxH)   55.9" x 35.4" x 27.6" (1,420 x 970 x 700 mm)

    Weight   297 lbs. (135 kg)


    GBC StreamPunch Ultra

    Punched Paper Sizes   10 fixed sizes (A5 – A3)

    Punched Media Weight Range   20 lb. Bond – 140 lb. Cover (up to 300 g/m2)

    Tab Punching   Yes

    “Two-Up” Punching   Yes

    Power Supply   115v, 60Hz

    Dimensions (WxDxH)   18" x 29" x 40" (445 x 730 x 1,000 mm)

    Weight   220 lbs. (100 kg)
