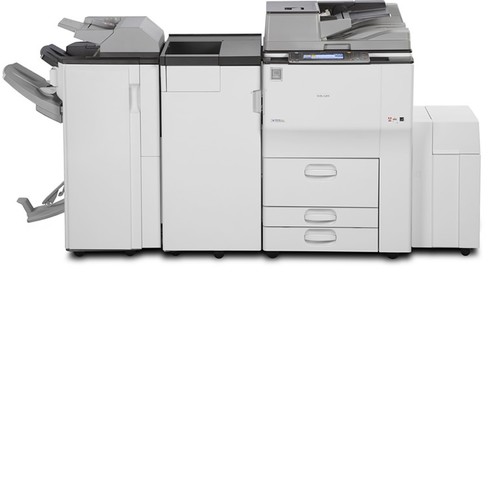

Aficio MP 7502SP

Aficio MP 7502SP

Experience more power, more features in a sleek, compact, sustainable design



You may not be able to predict the future. But you can prepare for it. The RICOH® Aficio MP 7502SP combine user-friendly customization and a sleek, easy-to-use design to streamline an array of everyday tasks efficiently. The services-led platform of the 75 ppm, black-and-white multifunction device offers advanced printing, copying, scanning, and distribution capabilities to ensure fast-moving, intuitive workflows that help reduce total cost of ownership. Choose the one that works best for you — as the primary system for your workgroup or as an integral part of the Ricoh Managed Document Services (MDS) strategy — and bolster productivity throughout your organization.
  • Copy
  • Print
  • Scan
  • Fax
  • Characteristics

    General Features

    • 75 ppm for reliable throughput that helps you transition from one job to the next with ease and efficiency.
    • Users can consolidate tasks —including copying, printing, scanning and faxing —with the MP 7502 SP.
    • Deliver first print times in as little as 3.2 seconds on a wide range of paper stocks without compromising space or your budget.
    • Scan and print directly at the device using a USB memory or SD card, for exceptional convenience.
    • Quota Setting allows administrators to set limits on output for individual users to curb excessive use.
    • Add frequently used functions as icon shortcuts directly to the full-color, animated home screen. In addition, you can return to the home screen at any time with convenient one-touch operation.
    • Access cloud-based solutions or Hot Spot printing quickly using the MFP Browser.
    • Attach an external keyboard via USB cable for more user-friendly navigation.


    Security Features

    • Enhanced Encryption Level (AES256bit, SHA-2) offers safer, more secure encryption algorithms. Plus, Bates Numbering provides identification protection and automatic consecutive numbering of documents.
    • Overwrite all stored data on the hard disk drive with standard DataOverWrite and encrypt the address book, authentication information and stored documents using standard HDD Encryption.


    Printer Features

    • Print high-quality documents at high speeds. The versatile systems offer 1200 x 1200 dpi resolution.
    • You can also preview PDF, JPEG and TIFF documents from a USB/SD card to minimize print errors.
    • Schedule Print enables users to print larger jobs during off-peak hours to reduce network congestion.
    • Use Auto Job Promotion to skip error print jobs.


    Mobile User Features

    • Mobile users now have the ability to print documents directly from their iOS device to their Ricoh MFP using the RICOH Smart Device Print&Scan App. The RICOH Smart Device Print&Scan App supports common formats such as PDF, iWork and MS Office files. The App also allows users to choose the Locked Print feature for added security, as well as make selections for paper size, paper type and duplexing
    • This flexible system offers convenient printing from most manufacturers’ smartphones/ tablets* and other web-enabled devices to ensure productivity in more places. (available for free download from either the Apple® App Store™ or via the Google Play™ store)


    Finisher Features

    • Choose from a variety of impressive finishing options to ensure end-to- end document production in more settings, from smaller offices to Central Reprographic Departments (CRD).
    • Use the 3,000-sheet multi-tray finisher with 50- or 100-sheet staple capacity to expedite larger jobs.
    • The 2,000-sheet finisher with saddle-stitch stapler can produce professional-grade booklets.
    • Take advantage of hole punching, multi-folding option, a user-assignable 9-bin mailbox to produce high-quality, finished documents on a wide range of paper stocks and sizes.


    Scanner Features

    • Enhanced Batch Scan lets users alternate between one- and two-sided scanning of original documents in a single job.
    • The size of high-quality PDF files can be reduced significantly with JBIG2 compression support for faster, easier distribution.
    • Users can save scans as digitally signed PDFs or in PDF/A format to protect the data more efficiently and securely.
    • Scan full-color or black and white originals, access LDAP-registered directories and distribute a wide range of documents using scan to web-mail/e-mail/SMB/FTP/URL/NCP with incredible control and minimal effort.
    • Scan to a USB/SD card right from the control panel – no PC is required.
    • Users can send scans and faxes simultaneously to streamline distribution.


    Fax Features

    • Several services-led platform Ricoh devices can be connected to share phone lines helping to reduce costs further with the fax connection option.
    • Faxes can be forwarded automatically to e-mail addresses, network folders or the system hard drive.
    • With IP Fax (T.38) and Internet Fax (T.37), users can distribute documents directly to e-mail addresses for more costeffective delivery.
    • Check, print, delete, retrieve, or download documents using your computer for paperless faxing that cuts steps and helps to reduce costs.


    Environmental Features B/W MFPs Guide

    • Manufactured with electric furnace melted steel sheets. These sheets are made of 100% recycled steel, which help to reduce the consumption of environmental resources. Ricoh is the first manufacturer to incorporate this process.
    • Users can visualize cost and paper resources by displaying the Eco-Friendly indicator, showing the percentage of paper reduction achieved.
    • This compact MFP is designed with default duplex printing to reduce paper consumption significantly.


    Workflow Features

    • Streamline fleet management with intuitive, unobtrusive administrative controls.
    • Reset print volume counters automatically to manage excess print and copy costs for individual users or workgroups efficiently.
    • Import and export preference settings — including applications, system settings and shortcuts — from other Ricoh services-led platform devices for fast, convenient deployments.
    • Identify up to 1,000 user codes to check usage and status via SmartDeviceMonitor.
    • Use banner page printing to separate print jobs to determine who printed each job.
    • Use WebSmartDeviceMonitor from any web browser to configure and diagnose network devices remotely.
    • Easy to use @Remote software automates service calls and simplifies the collection of critical device data.
    • Administrators can receive email alerts to ensure that devices are replenished with supplies promptly.
  • Specifications

    Specifications

    Memory (RAM)   1.5 GB max

    HDD   250 GB

    First Copy Out Time   3.2 seconds

    Recovery Time to Print Ready Mode   30 seconds

    Copy Speed   75 copies/minute multiple sets (Letter LEF)

    Original Size   Up to 11" x 17"

    Copy Size   5.5" x 8.5" – 11" x 17"

    Copy Resolution   True 600 x 600 dpi

    Grayscales   256 levels

    Zoom   25% – 400% in 1% increments

    Paper Capacity   Standard: Tray 1: 1,550 sheets x 2 (tandem) = 3,100 (Letter);
    Trays 2 & 3: 550 sheets each (user adjustable)
    Bypass: 100 sheets
    Total Standard/Max: 4,300/8,300 sheets

    Paper Weight   Trays 1 – 2: 52 – 169 g/m² (14 lb. Bond – 45 lb. Bond)
    Tray 3: 52 – 216 g/m² (14 lb. Bond – 80 lb. Cover)

    Power Requirements   120V/60Hz/20A (Requires dedicated 20A outlet)

    TEC Value   6.83 kWh

    Dimensions (W x D x H)   27.2" x 31.5" x 46.1" (690 x 799 x 1171 mm)


    Printer Specifications

    CPU   Intel Celeron M 1.0 GHz

    Print Speed   75 ppm

    Host Interface   Standard: 10Base-T Ethernet/100Base-TX Ethernet, USB 2.0, SD Card Interface Optional: IEEE 1284 (Parallel), IEEE 802.11a/b/g (Wireless LAN), Bluetooth, Gigabit Ethernet

    Network Protocol   TCP/IP (IPv4/IPv6), IPX/SPX¹

    Memory Capacity   1.5 GB

    PDL   Standard: PCL5e, PCL6
    Optional: Adobe PostScript 3©

    Printer Resolution (Max.)   PCL5e: 300/600 dpi
    PCL6: 600/1200 dpi
    PS 3: 300/600/1200 dpi

    Drivers   PCL5e/PCL6 /PS3

    ¹Download driver from website.


    Scanner Specifications

    Scan Speed   B/W 200 dpi (LT): 88 ipm (Simplex)/ 176 ipm (Duplex)
    B/W 300 dpi (LT): 88 ipm (Simplex)/176 ipm (Duplex)
    Color 200 dpi (LT): 88 ipm (Simplex)/ 176 ipm (Duplex)
    Color 300 dpi (LT): 88 ipm (Simplex)/ 120 ipm (Duplex)

    Optical Resolution   100 dpi – 600 dpi (100 – 1200 dpi with TWAIN)

    Interface Support   Standard: 10Base-T Ethernet/ 100Base-TX Ethernet;
    Optional: IEEE 802.11a/b/g, Gigabit Ethernet

    Drivers   Network TWAIN Driver and WIA Driver¹

    Scan to E-mail   Yes (up to 500 addresses per send)

    LDAP Support   Yes (Version 3)

    Max Stored Destination Addresses   2,000

    Authentication   SMTP/POP before SMTP

    Scan to Folder   Yes (up to 50 folders per job)

    Protocol Support   SMB, FTP, NCP (requires netware option)

    ¹Download driver from website.


    Facsimile Specifications (Optional)

    Type   ITU-T (CCIT) G3, Additional G3 (Optional)

    Circuit   PSTN, PBX

    Resolution   200 x 100 dpi (Standard Mode); 200 x 200 dpi (Detail Mode); 200 x 400 dpi (Fine Mode); 400 x 400 dpi (Super Fine Mode; available with optional SAF memory)

    Modem Speed   33.6 Kbps with auto fallback

    Compression Method   MH, MR, MMR, JBIG

    G3 Transmission Speed   Approximately 2 seconds/page (with JBIG);
    Approximately 3 seconds/page (with MMR)

    G3 Transmission Speed   0.70 seconds/page (Standard/Detail/SuperFine Mode; LTR SEF)

    Auto Dialing   2,000 Quick Dials, 100 Group Dials (500 locations each)

    SAF Memory   Standard: 4 MB (Approximately 320 pages);
    Maximum: 28 MB (approximately 2,240 pages) with memory option

    Additional Modes   Internet Fax by e-mail (T.37), IP Fax (T.38), LAN Fax, Fax Forward to E-mail/Folder, LDAP support


    Automatic Document Feeder

    Original Size   5.5" x 8.5" – 11" x 17"

    Paper Weight   Simplex: 11 lb. – 34 lb. Bond
    Duplex: 14 lb. – 34 lb. Bond

    Capacity   150 sheets (based on 20 lb. Bond)
  • Accessories

    RT4010 Large-Capacity Tray (LCT)

    Paper Size   8.5" x 11"/A4 (LEF)

    Paper Weight   14 – 34 lb. Bond (52 – 128 g/m²)

    Paper Capacity   4,000 sheets (20 lb. Bond – 75 g/m²)

    Dimensions (WxDxH)   12.36" x 18.03" x 25.94" (314 x 458 x 659 mm)


    8.5" x 14" Paper Size Tray Type 9002

        Enables legal-size (8.5" x 14") paper to be fed through LCT.

    Paper Size   8.5" x 14"/B4, 8.5" x 11" /A4 SEF

    Paper Capacity   2,500 sheets (20 lb. Bond – 75 g/m²)


    CS4000 9-Bin Mailbox

        Compatible with SR4060 and SR4070 Finishers.

    Number of Bins   9

    Paper Size   5.5" x 8.5" – 11" x 17"


    Copy Tray Type 9002

    Paper Capacity   500 sheets (8.5" x 11", 8.5" x 15")
    250 sheets (5.5" x 8.5", 11" x 17")


    11" x 17" Tray Type 9001

        Enables 8.5" x 11" – 11" x 17" paper to be fed from Tray 1.

    Paper Size   11" x 17" SEF, 8.5" x 14" SEF, 8.5" x 11" SEF

    Paper Capacity   1,000 sheets


    Cover Interposer Tray Type CI4000

        Compatible with all three finishers

    Paper Size   5.5" x 8.5" – 11" x 17"

    Paper Weight   17 lb. Bond – 110 lb. Index (64 – 216 g/m²)

    Paper Capacity   200 sheets (20 lb. Bond – 75 g/m²)


    FD4000 Multi-Folding Unit

        Compatible with SR4080 and SR4070 only.

    Folding Type:

    Single Sheet Mode   Z-Fold, Half-Fold, Letter Fold-in, Letter Fold-out, Double Parallel, Gate-Fold

    Multiple Sheets Mode   Half-Fold, Letter Fold-in, Letter Fold-out. Up to 3 sheets

    Paper Size:

    Single Sheet Mode   Z-Folding: 8.5" x 11" – 11" x 17", Half-Folding: 8.5" x 11" – 11" x 17", Letter Folding: 8.5" x 11" – 11" x 17"

    Multiple Sheets Mode   Double Parallel/Gate-Folding: 8.5" x 11", Multiple Sheets Mode Half-Folding: 8.5" x 11" – 11" x 17", Letter Folding: 8.5" x 11"


    SR4070 2,000-Sheet Saddle-Stitch Finisher with 50-Sheet Stapler

    Proof Tray:

    Paper Size   5.5" x 8.5" – 11" x 17" (A5-A3) SEF

    Paper Weight   14 lb. Bond – 90 lb. Index (52 – 128 g/m²)

    Stack Capacity   250 sheets (8.5" x 11" or smaller)
    50 sheets (8.5" x 14" or larger)
    30 sheets (Z-Fold/8.5" x 14" or larger
    20 sheets (Z-Fold/8.5" x 11" or smaller)


    Punch Unit Type 3260

        For use on the SR4060/SR4070

    Hole Positions   2 or 3 holes

    Paper Size   5.5" x 8.5" – 11" x 17"

    Paper Weight   14 lb. Bond – 90 lb. Index (52 – 163 g/m²)


    SR4080 3,000-Sheet Finisher with 100-Sheet Stapler

    Proof Tray:

    Paper Size   5.5" x 8.5" – 11" x 17" (A5-A3) SEF

    Paper Weight   14 lb. Bond – 80 lb. Cover (52 – 216 g/m²)

    Stack Capacity   500 sheets (8.5" x 11" or smaller)
    250 sheets (8.5" x 14" or larger)
    30 sheets (Z-Fold)


    Punch Unit Type 1075

    For use on the SR4080

    Hole Positions   2 or 3 holes

    Paper Weight   14 lb. Bond – 90 lb.Index (52 – 162 g/m²)

    Paper Size   5.5" x 8.5" – 11" x 17"


    SR4060 3,000-Sheet Finisher with 50-Sheet Stapler

    Proof Tray:

    Paper Size   5.5" x 8.5" – 11" x 17" SEF

    Paper Weight   14 lb. Bond – 90 lb. Index (52-163 g/m²)

    Stack Capacity   250 sheets (8.5" x 11" or smaller)
    50 sheets (8.5" x 14" or larger)


    GBC StreamPunch™ Pro

    Paper Size   8.5" x 11" LEF

    Paper Weight   20 lb. Bond – 110 lb. Index (75 – 216 g/m²)

    Die Sets   CombBind®, Twin Loop Wire (2:1 or 3:1), ColorCoil®, VeloBind®, Three-Ring, ProClick®


    BK5010e Production Booklet Maker

    Paper Size   8.5" x 11" – 11" x 17"

    Paper Weight   16 lb. Bond – 110 lb. Index (60 – 216 g/m²)
