RICOH Pro C5100s

Home Equipment Production equipment

RICOH Pro C5100s

See where productivity meets profitability

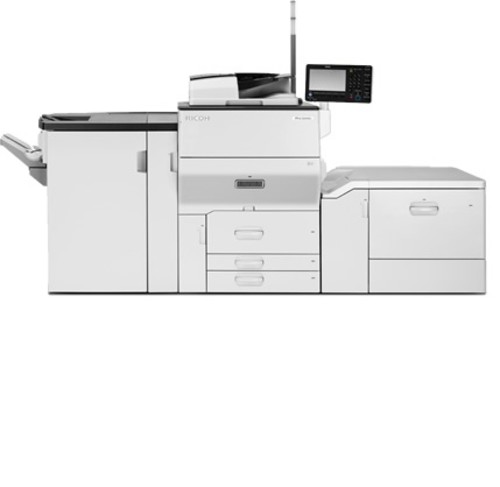

Designed specifically for high-quality, low-cost output in production environments, the RICOH Pro C5100s color digital printer combines incredible speed with intuitive controls and advanced capabilities. Use it to produce exceptional images with vivid colors and clarity on a wider range of media without compromising convenience, space or resources. Keep high-grade, professional jobs in-house and share them quickly and economically. This versatile, easy-to-use production printer can be used as a primary device in production settings or as an affordable, complementary system in CRD or print center environments.
  • Colour
  • Copy
  • Print
  • Scan
  • Characteristics

    General Features

    • The RICOH Pro C5100s prints documents with up to 1200 x 4800 dpi image resolution for professional-grade results.
    • Take advantage of its revolutionary Vertical Cavity Surface Emitting Laser (VCSEL) technology for precise reproductions. It emits laser beams to adjust to sheet expansion and contraction, which minimizes color shift.
    • It produces up to 65 color prints per minute for impressive throughput in any environment.
    • The printer automatically readjusts paper to align front and back registration for more accurate printing even during your longest print runs. It also includes an elastic fusing belt to ensure better, more consistent transfer and toner adhesion on specialty stocks.
    • This workhorse is designed so trained users can easily replace key units and consumables themselves without technical assistance. Users can even replace toner in moments without interrupting print runs.
    • A light pole comes standard to signal when the system requires attention. It enables users to check status with a single glance from anywhere in the room.
    • An indicator light is on every paper tray to alert users when it’s in use and should not be opened.
    • Misfeeds are identified with LED lights that trace the paper path for fast, easy paper clearance.


    Fiery Print Controller Features

    • Choose from two Fiery print controllers to simplify print management in either Windows or Mac environments.
    • The optional Fiery E-22B color controller handles most CRD jobs and color management tasks with ease while the optional Fiery E-42B color server is designed to give users even more advanced control for high-quality performance that’s usually reserved for larger, more expensive devices in high-end commercial print environments.


    Innovative Features

    • CI4010 and CI4020 Cover Interposers (Optional): Feed pre-printed sheets from one or two sources for front and back covers.
    • SR4100 2,000-Sheet Booklet Finisher (Optional): Produce full-color booklets cost-effectively with the in-line Booklet Finisher. Also available with an optional Hole Punch Unit.
    • SR4110 and SR4090 3,000-Sheet Finishers (Optional): Choose from 65- or 100-sheet stapling with the ability to output documents up to 13" x 19.2". Add the optional Hole Punch Unit for even more flexibility.
    • FD4000 Multi-Fold Unit (Optional): Execute six different folds to create a variety of finished documents.
    • BK5010e Production Booklet Maker (Optional): Saddle stitch up to 30 sheets to create 120-page booklets with square folds and three-side trim for full bleeds.
    • GBC StreamPunch™ (Optional): Create professionalquality bound books with in-line punching in a variety of patterns.
    • Buffer Pass Unit (Optional): Minimize toner adhesion on stacked, coated paper by cooling output prior to the media entering a finishing unit.
    • Decurl Unit (Optional): Promote more accurate stacking and higher throughput by reducing the risk of paper curling.
    • 100-Sheet Document Feeder (Standard): Copy and scan jobs more efficiently with single-pass color duplex scanning — up to 220 ipm in duplex mode.
    • Full-Color WVGA Control Panel (Standard): Navigate from job to job easily with fingertip control via the post mounted, intuitive touch screen.
  • Specifications

    System Specifications

    Process   4 drum dry electrostatic transfer system with internal transfer belt

    Fusing   Oil-less belt fusing method

    System Memory   320GB (160GB x 2)

    Document Feeder   100-Sheet ADF with single-pass color duplex scanning at up to 220 ipm

    Control Panel   Full-color 9" WVGA touch panel

    Copy Resolution   600 dpi

    Print Resolution   1200 x 4800 dpi

    Scan Resolution   600 dpi

    Scan Speed   (BW/FC): Simplex: 120 ipm; Duplex: 220 ipm

    Maximum Print Area   Up to 12.7" x 18.9" (323 x 480mm) (from platen)

    Warm-Up Time   Less than 300 sec.

    Output Speed   65 ppm (FC/BW)

    Paper Capacity   Tray 1: 1,250 x 2; Trays 2 – 3: 550 x 2; Bypass Tray: 250 sheets; Supports duplex; Total Standard/Maximum: 3,850/8,250 sheets

    Paper Size   Tray 1: 8.5" x 11"; Trays 2 – 3: 5.5" x 8.5" – 13" x 19.2"; Bypass: 5.5" x 8.5" – 13" x 19.2", Envelopes

    Paper Weights   Tray 1 – 3: 16 lb. Bond – 140 lb. Index (52 – 256 g/m²)
    Bypass Tray: 16 lb. Bond – 110 lb. Cover (52 – 300 g/m²)
    Duplex: 16 lb. Bond – 140 lb. Index (52 – 256 g/m²)

    Maximum Monthly Volume   150K

    Duty Cycle   300K

    Power Requirements   208-240V/12A/60Hz (dedicated)

    Maximum Power Consumption   1,920W or less

    Dimensions (W x D x H)   32.9" x 34.6" x 48.4" (835 x 880 x 1,230mm) (including ADF)

    Weight   Less than 574 lbs. (261 kg)


    Copier Features

        Simplified Display, Auto Paper Selection, Auto Start, Auto Tray Switching, Auto Image Density, Auto Color Calibration, Interrupt Copy, User Codes (1,000), Job Programs (25), Color Erase/Convert/Overlay, Electronic Sort/Stack, Image Rotation, Rotate Sorting, Bates Numbering, Multiple Security Features (DOSS, Data Encryption (AES256bit/SHA2), Network User Authentication, Unauthorized Copy Control, Mandatory Security Information Print (Compulsory Security Stamp), SMTP over SSL, Common Criteria Certification (IEEE2600.1)
  • Accessories

    RT4030 DLT Large Capacity Tray (LCT)

    Paper Capacity   2,200 sheets

    Paper Size   Up to 13" x 19.2"

    Paper Weight   16 lb. – 110 lb. Cover (52 – 300 g/m²)

    Dimensions (WxDxH)   34.2" x 28.7" x 25.9" (869 x 730 x 658mm)


    RT4020 Large Capacity Tray (LCT)

    Paper Capacity   4,400 sheets

    Paper Size   8.5" x 11"

    Paper Weight   16 lb. – 80 lb. Cover (52 – 216 g/m²)

    Dimensions (WxDxH)   19.7" x 21.3" x 24.6" (500 x 540 x 625mm) (with LG unit)

    Weight   44 lbs. (20 kg)


    CI4010 Cover Interposer

    Paper Size   5.5" x 8.5" – 13" x 19.2"

    Paper Weight   17 lb. Bond – 80 lb. Cover (64 – 216 g/m²)

    Stack Capacity   200 sheets

    Dimensions (WxDxH)   19.7" x 23.6" x 23.6" (500 x 600 x 600mm)

    Weight   26 lbs. (12 kg)


    CI4020 Two-Source Cover Interposer

    Paper Size   5.5" x 8.5" – 13" x 19.2"

    Paper Weight   17 lb. Bond – 80 lb. Cover (64 – 216 g/m²)

    Stack Capacity   200 sheets x 2 trays

    Dimensions (WxDxH)   21.2" x 28.7" x 50" (540 x 730 x 1270mm)

    Weight   99 lbs. (45 kg)


    SR4090 3,000-Sheet Finisher with 65-Sheet Stapler

    Capacity (Proof Tray)   250 sheets (8.5" x 11" or smaller)
    50 sheets (8.5" x 14" or larger)

    Capacity (Shift Tray)   8.5" x 11": 3,000 sheets
    8.5" x 14" – 13" x 19.2": 1,500 sheets

    Paper Size   5.5" x 8.5" – 13" x 19.2"

    Paper Weight   Proof Tray: 16 lb. Bond – 80 lb. Cover (52 – 220 g/m²)
    Shift Tray: 16 lb. Bond – 110 lb. Cover (52 – 300 g/m²)

    Staple   8.5" x 11": 65 pages; 8.5" x 14" – 13" x 19.2": 50 pages

    Dimensions (WxDxH)   25.8" x 24.1" x 37.8" (657 x 613 x 960mm)

    Weight   117 lbs. (53 kg)


    SR4110 3,000-Sheet Finisher with 100-Sheet Stapler

    Capacity (Proof Tray)   500 sheets (8.5" x 11" or smaller)

    8.5" x 11": 3,000 sheets; 8.5" x 14" – 11" x 17": 1,500 sheets; 12" x 18" – 13" x 19.2": 1,000 sheets 5.5" x 8.5" – 13" x 19.2" Proof Tray: 16 lb. Bond – 80 lb. Cover (52 – 216 g/m2); Shift Tray: 16 lb. Bond – 110 lb. Cover (52 – 300 g/m2) 8.5" x 11": 100 pages 8.5" x 14" - 11" x 17": 50 pages 31.7" x 28.7" x 38.5" (806 x 730 x 980mm) 165 lbs. (75 kg)
    Capacity (Shift Tray)   8.5" x 11": 3,000 sheets; 8.5" x 14" – 11" x 17": 1,500 sheets; 12" x 18" – 13" x 19.2": 1,000 sheets

    Paper Size   5.5" x 8.5" – 13" x 19.2"

    Paper Weight   Proof Tray: 16 lb. Bond – 80 lb. Cover (52 – 216 g/m²)
    Shift Tray: 16 lb. Bond – 110 lb. Cover (52 – 300 g/m²)

    Dimensions (WxDxH)   31.7" x 28.7" x 38.5" (806 x 730 x 980mm)

    Weight   165 lbs. (75 kg)


    SR4100 2,000-Sheet Booklet Finisher

    Capacity (Proof Tray)   250 sheets (8.5" x 11" or smaller)
    50 sheets (8.5" x 14" or larger)

    Capacity (Shift Tray)   8.5" x 11": 2,000 sheets
    8.5" x 14" – 13" x 19.2": 1,000 sheets

    Paper Size   5.5" x 8.5" – 13" x 19.2"

    Paper Weight   16 lb. Bond – 80 lb. Cover (52 – 220 g/m2²)

    Staple   8.5" x 11": 50 pages
    8.5" x 14" – 11" x 17": 30 pages

    Saddle Stitch Staple   8.5" x 11" – 13" x 19.2": 20 pages

    Folding Without Staple   1 – 5 sheets

    Dimensions (WxDxH)   25.8" x 24.1" x 37.8" (657 x 613 x 960mm)

    Paper Weight   28 lb. Bond Max. (64 – 105 g/m2)

    Weight   117 lbs. (53 kg)


    FD5000 Multi-Folding Unit

    Folding Type   Single Sheet Mode: Z-Fold, Half-Fold/Print inside, Half-Fold/Print outside, Letter Fold-in/Print inside, Letter Fold-in/Print outside, Letter Fold-out, Double Parallel/Print inside, Double Parallel/Print outside, Gate-Fold/Print inside, Gate-Fold/Print outside

    Multiple Sheets Mode   Same as Single Sheet mode; up to 3 sheets

    Paper Size   Single Sheet Mode: Z folding: 8.5" x 11" – 12" x 18"; Half folding: 8.5" x 11" – 13" x 19.2"; Letter folding: 8.5" x 11" – 12" x 18"

    Multiple Sheets Mode   Double Parallel folding: 8.5" x 11" – 12" x 18"; Gate folding: 8.5" x 11"; Half folding: 8.5" x 11" – 13" x 19.2"; Letter Fold-out: 8.5" x 11" – 8.5" x 14"; Letter Fold-in: 8.5" x 11" – 12" x 18"

    Dimensions (WxDxH)   18.5" x 38.5" x 28.75" (470 x 980 x 730mm)

    Weight   203 lbs. (92 kg)


    Buffer Pass Unit

    Paper Size   Up to 13" x 19.2"

    Paper Weight   16 lb. – 110 lb. Cover (52 – 300 g/m²)

    Dimensions (WxDxH)   13" x 38.6" x 28.5" (330 x 980 x 725mm)

    Weight   202 lbs. (92 kg)


    Decurl Unit

    Decurl Function   Five steps pressure adjustment (from operation panel)

    Paper Size   Up to 13" x 19.2"

    Paper Weight   16 lb. – 110 lb. Cover (52 – 300 g/m²)

    Dimensions (WxDxH)   6.7" x 38.9" x 28.7" (170 x 990 x 730mm)

    Weight   66 lbs. (30 kg)


    GBC StreamPunch

    Paper Size Punched   8.5" x 11" LEF

    Paper Weight   20 lb. Bond – 110 lb. Index (216 g/m²)

    Die Sets   CombBind®, Twin Loop Wire (2:1 or 3:1), ColorCoil®, VeloBind®, Three-Ring, ProClick®


    BK5010e Production Booklet Maker

    Paper Size   8.5" x 11" – 11" x 17"

    Paper Weight   16 lb. Bond – 110 lb. Index (216 g/m²)


    Additional Accessories

        PU5000 Punch Unit; PU3060 Punch Unit; Output Jogger Unit Type M2; Tray Type M2; 11" x 17" Tray Unit Type M2; Tab Sheet Holder Type M2; File Format Converter Type E; Copy Data Security Kit Type G; Copy Tray Type M2; DataOverwriteSecurity System Unit (DOSS) Type H


    Fiery E-22B Color Controller Specifications

    Controller Type   Embedded Type

    Fiery Platform Fiery   FS100

    Maximum Continuous Print   65 ppm B/W and Color

    CPU   Intel Pentium G850 2.9GHz

    Host Interface   1000Base-T/100Base-TX/10Base-T

    Memory   2GB

    Internal HDD   500GB

    Operating System   Linux

    Network Protocol   TCP/IP (IPv4/IPv6), SMB

    Printer Description Language   Adobe PostScript 3 (std.), PCL6/5c (std.)

    Maximum Print Resolution   1200 x 4800 dpi

    Maximum Scan Resolution   Up to 600 dpi

    Fonts PS3: 138 fonts/PCL:   80 AGFA fonts

    Operation Panel   Via touch panel display on the MFP

    Utilities   Standard: Command WorkStation 5, Fiery Scan, Printer Delete Utility, Fiery Web Tools, Fiery Bridge, Fiery VUE
    Optional: SeeQuence Impose, SeeQuence Compose, Color Profiler Suite ES-2000, Auto Trapping, Spot-On, Hot Folders/Virtual Printers, Productivity Package

    Color Management Tools   ICC Profile, Color Chart, CMYK Color Reference Pages, RGB Color Tests, Trapping Support, ColorWise Pro Tools

    Calibration   Color Cal, ES-2000 (opt.)


    Fiery E-42B Color Controller Specifications

    Controller Type   Server Type

    Fiery Platform   Fiery FS100 Pro

    Maximum Continuous Print Speed   65 ppm B/W and Color

    CPU   Intel i5-2400 3.1GHz

    Host Interface   1000Base-T/100Base-TX/10Base-T

    Memory   2GB

    Internal HDD   1TB

    Operating System   Windows 7 Professional

    Network Protocol   TCP/IP (IPv4/IPv6), SMB

    Printer Description Language   Adobe PostScript 3 (std.), PCL6/5c (std.)

    Print Resolution   1200 x 4800 dpi

    Scan Resolution   600 dpi

    Fonts   PS3: 138 fonts/PCL: 80 AGFA fonts

    Operation Panel   Via touch panel display on the MFP

    Utilities   Standard: Command WorkStation 5, Fiery Scan, Printer Delete Utility, Fiery Web Tools, Fiery Bridge, Fiery VUE
    Optional: SeeQuence Impose, SeeQuence Compose, Color Profiler Suite ES-2000, Auto Trapping, Spot-On, Hot Folders/Virtual Printers, Graphic Arts Package Premium Edition Upgrade

    Color Management Tools   ICC Profile, Color Chart, CMYK Color Reference Pages, RGB Color Tests, Trapping Support, ColorWise Pro Tools

    Calibration   Color Cal, ES-2000 (opt.)

    Power Requirements   100-240V/3.0A/50-60Hz

    Maximum Power Consumption   350W

    Dimensions (WxDxH)   8.3" x 19" x 19.2" (212 x 482 x 488mm)

    Weight   43.1 lbs. (19.6 kg)
