Ricoh Pro C9100/9110

Home Equipment Production equipment

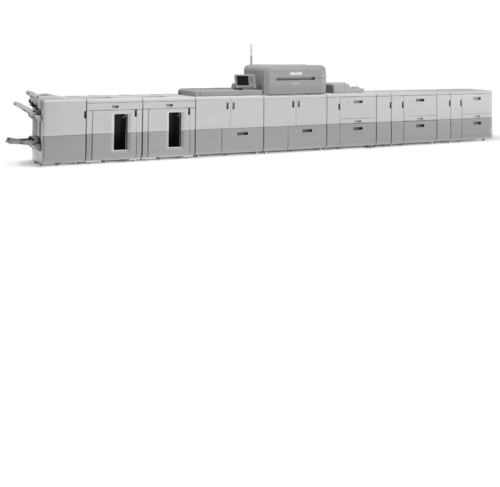

Ricoh Pro C9100/9110

Remove barriers from your business


Transform and deliver your information with fast turns and more personalization, all at the right price.
  • Colour
  • Print
  • Characteristics

    General Features

    • Transform and deliver your information with fast turns and more personalization, all at the right price. With the affordable RICOH Pro C9100 or RICOH Pro C9110, you can burst into the world of high-speed digital production:
      • Print high-speed digital output at near-offset quality.
      • Add variable data and a wider range of media options for large or small print runs.
      • Capture new business by switching from your existing offset press or underpowered digital print system.
    • Give customers more print options
      Attract new customers — and potentially increase business from existing ones — by offering more options for their information. Print a wide range of oversized signs, banners and point-of-purchase displays. Recreate exceptional images and crisp text on every brochure, handout and postcard. Print on magnets, envelopes and transpromotional material in vivid color and clarity to bring messages to life — and customers back for more.
    • Make your printing easier
      Simplify print production with an automated digital print system that reduces manual touchpoints. Take advantage of up to 8 vacuum-fed paper drawers to dispatch media with incredible precision. Preset or customize settings in the extensive paper library for up to 1,000 profiles, and use the Media Identification Unit to greatly reduce your production prep work time.
    • Meet your deadlines
      Drive new business by driving your volume up to one million pages per month. Simply follow the animated guides on the control panel to access key settings. Print your thickest stocks without compromising speed or quality. With vacuum-fed, air-assisted feeding from every drawer and a straight path belt cooling system, you can minimize jams, double feeds, overheating and delays. Plus, you can store up to 18,150 sheets of paper and change consumables on the fly to complete jobs faster and with fewer interruptions.
    • Partner with the experts for best results
      You can perform most tasks yourself, including managing colors, replacing toners or setting up unique workflows. When you do need service, our team of print experts is available 24/7/365 to get you back on track. As part of our G7 Master Print Qualification, we can help you verify accurate color across almost any substrate. We can also teach your staff what to look for when gauging colors during production runs and offer insights to improve your workflows.
    • Differentiate your work
      Don’t turn down jobs. Print the information your customers need — at a price they can afford. Use a wider range of media stocks, from 52 gsm to 400 gsm, even with duplex printing. Produce two-sided specialty and oversized projects up to 27.5 inches long. Print on specialty media, including super-gloss, metallic, coated, transparent and other synthetics. Get superior transfer on textured media, even vellums and linens, via elastic transfer belt and advanced toner transfer technology.
    • Captivate with compelling color and clarity
      Make information jump off the page with best-in-class reproductions up to 1200 x 4800 dpi resolution. Customers will notice the sharp, precise lines and brilliant colors. Even better, so will their audience. Maintain precise registration — front-to-back — with Vertical Cavity Surface Emitting Laser (VCSEL) technology. Minimize inconsistencies with the printer’s automatic calibration, which delivers reliable color during even the longest jobs. Reduce guesswork and mistakes. Specify up to 250 spot colors, set up proofing touchpoints, define delivery styles and more.
    • Take control with extra firepower
      We give you print controllers with the power and precision to expedite even your largest, most complex jobs. Add the Fiery® Pro 80 or QX Color Controllers for end-to-end automated workflows that simplify high-volume printing. Or use EFI’s Fiery Server technology for even more capabilities. Manage multiple deadlines by using the EFI Fiery controller to RIP one job while processing another. Preset your settings, configurations and even frequently run jobs for faster, more reliable print runs. Use EFI Fiery® FreeForm and PPML to manage variable data and produce highly personalized print campaigns. Record accounting information in the print job with the new job tracker feature to keep you on task and on budget.
    • Add the finishing touch
      Finish what you started with impeccable style by choosing one of these productive finishing solutions: Create books at sizes up to 11” x 17” with minimal effort using the booklet maker, folder and trimmers. Fold media in multiple styles to give customers more options. Collate, bind, punch, trim and add or close rings with minimal manual intervention.
  • Specifications

    Specifications

    Print Resolution   1200 x 4800 dpi VCSEL

    Output Speed   Pro C9100: 110 ppm (FC/B&W)
    Pro C9110: 130 ppm (FC/B&W)

    Paper Capacity   Standard: 1st Tray: 2,200 sheets,
    2nd Tray: 2,200 sheets
    Optional Vacuum Feed LCT 3rd – 8th Trays: 2,200 sheets for each tray
    Bypass Tray: 550 sheets
    Supports duplex
    Total Standard/Maximum: 4,950/18,150 sheets

    Power Requirements   208-240V, Less than 60A (30A x 2), 50/60Hz

    Dimensions (W x D x H)   99.2" x 39" x 49" (2520mm x 990mm x 1500mm)
    Height: 73.6" (1870mm) when including status pole

    Weight   Less than 2,200 lbs. (1,000 kg)
  • Accessories

    Vacuum Feed Large Capacity Input Tray (LCIT RT5100)

    Dimensions (WxDxH)   41.5" x 28.7" x 39.4"
    (1054mm x 730mm x 1000mm)

    Paper Capacity   2,200 sheets

    Weight   Less than 484 lbs. (220 kg)

    Power Consumption   Less than 860Wg/m²)

    Power Supply   100 – 127V

    Paper Size   A5 (LEF)/ 5.5" x 8.5" – 13" x 19.2"

    Paper Weight   14 lb. Bond – 150 lb. Cover (52.3 – 400 g/m2)


    Vacuum Feed Oversize Tray Type S3

    Dimensions (WxDxH)   When attached to the LCIT RT5100 the dimensions become 50.8" x 28.7" x 39.4" (1290mm x 730mm x 1000mm)

    Weight   Less than 88 lbs. (40 kg)

    Paper Size   233.2 lbs. (106 kg)

    Paper Weight   14 lb. Bond – 110 lb. Cover (52.3 – 300 g/m2)

    Paper Capacity   730 sheets


    Bridge Unit for LCIT RT5100 (BU5010)

    Dimensions (WxDxH)   13" x 28.7" x 39.4" (330mm x 730mm x 1000mm)

    Weight   Less than 132 lbs. (60 kg)

    Power Source   From LCIT RT5100

    Paper Size   Width: 3.94" to 13" (210mm to 330.2mm)
    Length: 5.5" to 27.55" (420mm x 700mm)

    Paper Weight   14 lb. Bond – 150 lb. Cover (52.3 – 400 g/m2)


    Multi Bypass Tray Unit (BY5010)

    Dimensions (WxDxH)   27.1" x 22.1" x 8.3" (690mm x 561mm x 210mm)

    Weight   Less than 44 lbs. (20 kg)

    Power Source   From LCIT RT5100

    Paper Capacity   550 sheets

    Paper Size   5.5" x 8.5" – 13" x 27"

    Paper Weight   14 lb. Bond – 80 lb. Cover (uncoated) (52.3 - 216 g/m2)

    Paper Volume Sensors   In 4 steps: Near end, 0%, 50%, 100%


    Multi Bypass Oversize Sheet Tray Type S3

    Dimensions (WxDxH)   42.9" x 22.1" x 8.3" (1090mm x 561mm x 210mm)

    Weight   Less than 20.9 lbs. (9.5 kg)

    Media Size   5.5" x 8.5" – 13" x 27.5"

    Media Weight   14 lb. Bond – 110 lb. Cover (coated and duplex) (52.3 – 300 g/m2)

    Media Capacity   Up to 550 sheets (20 lb. Bond, 80 g/m2)


    3,000 Sheets Finisher with 100 Sheets Stapler (SR5050)

    Dimensions (WxDxH)   39.2" x 28.7" x 44.3" (996mm x 730mm x 1126mm)

    Weight   Less than 246.4 lbs. (112 kg)

    Power Consumption   Less than 150W (excluding peak consumption)

    Power Supply   120 – 240V

    Output Jogger   Standard

    Staple Position Adjustment   Yes (Two-position staple only)

    Proof Tray Stack Capacity   250 sheets (20 lb. Bond, 80 g/m2), A5 – 13" x 19.2"

    Shift Tray Stack Capacity   3,000 sheets (A4 LEF, B5 LEF, 8.5" x 11" LEF), 1,500 sheets (A3, A4 SEF, B4, B5 SEF, 11" x 17" SEF, 8 1/2 " x 11" SEF, SRA4, 226 x 310mm), 1,000 sheets 12" x 18", SRA3, 13" x 18", 12.6" x 18.5", 12.6" x 19.2", 13" x 19", 13" x 19.2", 310 x 432mm)


    Booklet Finisher (SR5060)

    Dimensions (WxDxH)   39.2" x 28.7" x 44.3" (996mm x 730mm x 1126mm)

    Weight   Less than 246.4 lbs. (112 kg)

    Power Consumption   Less than 150W (Excluding peak consumption)

    Power Supply   120 – 240V

    Output Jogger   Standard

    Proof Tray Stack Capacity   250 sheets (20 lb. Bond, 80 g/m2)

    Shift Tray Stack Capacity   2,500 sheets (20 lb. Bond, 80 g/m2)


    Cover Interposer Tray (CI5030)

    Dimensions (WxDxH)   21.3" x 28.7" x 50.8" (540mm x 730mm x 1290mm)

    Weight   Less than 99 lbs. (45 kg)

    Power Source   From mainframe

    Paper Size   A5/HLT - 13" x 19.2"

    Paper Weight   17 – 58 lb. Bond /110 lb. Index (64 – 216 g/m2)

    Paper Capacity   200 sheets x 2 trays

    Original Set   Face up, first sheet on top


    Ring Binder (RB5020)

    Dimensions (WxDxH)   34.2" x 28.7" x 39.8" (870mm x 730mm x 1010mm)

    Weight   Less than 308 lbs. (140 kg)

    Power Consumption   Less than 400W

    Power Supply   100 – 240V, 50/60Hz

    Paper Size   A4 LEF, 8.5" x 11" LEF

    Paper Weight   20 – 40 lb. Bond, 90 – 110 lb. Index, 50 – 80 lb. Cover (64 – 216 g/m2)

    Capacity of Ring Bind   2 – 100 sheets

    Tab Stock   Supported


    Perfect Binder (GB5010)

    Dimensions (WxDxH)   42.9" x 31.1" x 54.6" (1090mm x 791mm x 1387mm)

    Weight   Less than 770 lbs. (350 kg)

    Power Consumption   Less than 623W

    Power Supply   200 – 240V, 50/60Hz

    Cutting Directions   3 edges, 1 edge, None

    Booklet Size   Width: 7.9" x 11.7" (201 – 297mm)
    Length: 5.5" x 8.5" 139.7 – 216mm

    Paper Weight   24 – 40 lb. Bond, 90 lb. Index, 50 – 110 lb. Cover (90 – 300 g/m2)


    6-Position Multi-Folding Unit (FD5020)

    Dimensions (WxDxH)   18.5 " x 28.7" x 39.4" (470mm x 730mm x 1000mm)

    Weight   Less than 165 lbs. (92 kg)

    Power Consumption   Less than 240W

    Power Supply   120V, 50/60Hz

    Single Sheet   Z-fold, Half fold, Letter fold, Double Parallel fold, Gatefold

    Multiple Sheets   Up to 3 sheets, Half fold, Letter fold

    Paper Size   Single Sheet: Up to 12" x 18" for Z-fold, Double Parallel, Gate fold; Up to 13" x 19" for Half fold Multiple Sheets: Up to 13" x 19" for Half fold; Up to 8.5" x 11" for Letter fold

    Paper Weight   Single Sheet: 64 – 105 g/m2
    Multiple Sheets: 64 – 80 g/m2


    Booklet Trimmer (TR5040)

    Dimensions (WxDxH)   43.9" x 23.3" x 21.8" (1115mm x 591mm x 555mm)

    Weight   Less than 246.4 lbs. (75 kg)

    Power Supply   120V, 50/60Hz

    Trimming Type   One side edge

    Trimming Capacity   1 – 20 sheets (2 – 40 pages after folding)

    Paper Size   Up to 13" x 19.2"

    Stack Capacity   1 – 5 sheets: 60 sets
    6 – 10 sheets: 35 – 40 sets
    11 – 20 sheets: 20 – 25 sets


    High Capacity Stacker (SK5030)

    Dimensions (WxDxH)   35.4" x 28.7" x 39.8" (900mm x 730mm x 1010mm)

    Weight   Stacker: 264 lbs. (120 kg); Roll Away Cart: 33 lbs. (15 kg)

    Power Consumption   Less than 120W

    Power Supply   120 – 127V, 50/60Hz

    Paper Capacity   5,000 sheets (SRA3, A4, LT size)
    Proof Tray: 250 Sheets

    Output Jogger   Standard

    Rollaway Cart   Standard; optional additional carts available


    Buffer Pass Unit Type S3

    Dimensions (WxDxH)   13" x 28.7" x 39.8" (330mm x 730mm x 1010mm)

    Weight   Less than 198 lbs. (90 kg)

    Power Consumption   Less than 200W

    Power Supply   120V, 50/60Hz


    Consumables

    CMYK Toners   Yield: 52,000 pages/bottle*

    Waste Toner Bottle   Yield: 220,000 pages

    Staples   5,000/cartridge (for SR5050 and SR5060)

    Ring Cartridge   75 sets/cartridge

    *Based on 8.75% coverage (A4/LT)

    TCRU Program

    -   Supported


    Workflow Solutions Supported

    -   Ricoh Process Director Express®, Ricoh TotalFlow Prep, TotalFlow Print Manager/Production Manager, TotalFlow Path and TotalFlow BatchBuilder, Ricoh @Remote, EFI™ Digital StoreFront®, EFI Color Profiler Suite, EFI Fiery® Graphic Arts Package Premium Edition, EFI Compose, Impose, DirectSmile®, EFI Fiery Central, Objectif Lune PlanetPress, PTI FusionPro®, PTI MarcomCentral®, CGS ORIS Lynx & PressMatcher


    Fiery E43A and Fiery E83A Controllers

    Memory   E43A: 2GB x 2, E83A: 2GB x 8

    CPU   E43A: Intel® Core™ i5-4570 (2.9GHz up to 3.6GHz with Turbo)
    E83A: Intel® Xeon® (Quad-Core) E5-2637 (3.5GHz up to 3.8GHz w/Turbo)

    Operating System   Windows® 7 Professional for Embedded Systems x64


    GBC StreamPunch Ultra

    Punched Paper Sizes   10 fixed sizes (A5 – A3)

    Punched Media Weight Range   20 lb. Bond – 140 lb. Cover (300 g/m2 max)

    Tab Punching   Yes

    “Two-Up” Punching   Yes


    Plockmatic PBM350 / PBM500

    Paper Size   8.5" x 11" – 12" x 18"

    Paper Weight   64 g/m2/16 lb. Bond – 100 lb. cover/300 g/m2

    Set Size   2-50 Sheets PBM500
    2-35 Sheets PBM350
    (80 g/m2/20 lb. Bond)
