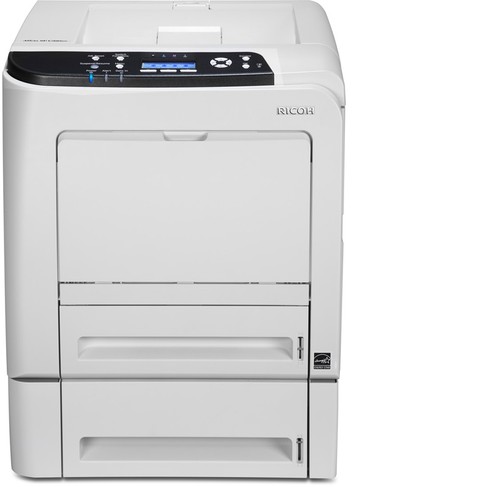

SP C320DN

Robust capabilities, impressive results.


Businesses face new pressures today. To compete, you need to move faster, deliver more and spend less. The Ricoh Aficio SP C320DN Color Laser Printer addresses these challenges and helps you succeed. This ultra-quick printer offers an Economy Color Mode that lets you choose when to print draft- or review-quality documents and when to print presentation-quality documents. This breakthrough capability fits perfectly with a Managed Print strategy that can help you monitor, control and improve output. Other new capabilities—including an ECO Night Sensor that automatically powers down the printer after-hours and robust security features that safeguard documents and data—deliver entirely new and sustainable cost savings.
  • Colour
  • Print
  • Characteristics

    General Features

    • Optimize color toner use with a new Economy Color Mode that applies less toner for draft prints and presentation color for final documents.
    • Select the right supplies for your workflow with a choice of conventional or high-yield cartridges which add to your cost-per-page savings.
    • Print high-quality presentations, proposals and other documents in brilliant color with resolutions up to 1,200 dpi.
    • Push productivity to a new level with a powerful 533 quick 26 pages-per-minute print speed—whether you presentation color or black-and-white.
    • Handle large files without disrupting your workflow.The Ricoh Aficio SP C320DN offers expansive memory up to 768 MB.
    • Keep projects moving fast, even with oversized documents. through the Standard Tray or use the Bypass Tray for index) and banner printing (up to 8.5” x 49.6”).
    • Spend less time replenishing paper with a 500-sheet expandable up to 1,100 sheet total paper capacity.


    Environmental Features

    • Ensure efficient energy use with the new ECO Night Sensor that powers down when office lights have been off for an amount of time designated by the user.
    • Save energy and time waiting for documents with less than 20 seconds warm-up time and less than 13.5 seconds first-print speed.
    • Reduce paper usage and costs with standard automatic duplex printing—a great solution for printing multi-page reports, plans, white papers or training documentation.
    • Minimize toner usage with the new Economy Color Mode that lets you be selective about applying color to documents.


    Security Features

    • Ensure that only authorized users have access to the Ricoh Aficio SP C320DN and the data stored within the printer with User Authentication.
    • Prevent the interception of unprotected data streams with built-in network encryption capabilities.
    • Configure the Ricoh Aficio SP C320DN with an optional hard disk drive and DataOverwriteSecurity System (DOSS), which automatically removes data from the hard disk drive after each job is completed.
  • Specifications

    System Specifications

    Main Unit   Part # 406790

    Configuration   Desktop

    Technology   Laser beam scanning, color laser electrophotographic printing with monocomponent toner development, 4-drum tandem method

    Resolution   600 x 600 dpi (1 bit) (Default), 600 x 600 dpi (2 bit), 1200 x 1200 dpi (1 bit)

    Printing Speed   B/W: 26 ppm (Letter), FC: 26 ppm (Letter)

    First Print Speed   13.5 sec. or less (Full-color and Monochrome)

    Auto Duplex   Standard

    Standard Paper Capacity   500 sheets

    Bypass Tray   100 sheets

    Optional Paper Capacity   500 sheets (one Paper Feed Unit may be added)

    Maximum Paper Capacity   Up to 1,100 sheets

    Output Capacity   150 sheets (face down)

    Acceptable Paper Sizes   Standard Paper Tray: Letter (8.5” x 11”), Legal (8.5” x 14”), Executive (7.25” x 10.5”), Foolscap (8.5” x 13”), Folio (8.25” x 13”), F (8” x 13”), A4 (210 x 297 mm), A5 (148 x 210 mm), B5 (148 x 257 mm)
    Custom Size Range: Width: 5.8” – 8.5” (148 – 216 mm), Length: 8.3” – 14” (210 – 356 mm)
    Bypass Tray: Letter (8.5” x 11”), Legal (8.5” x 14”), Executive (7.25” x 10.5”), Half Letter (5.5” x 8.5”), Foolscap (8.5” x 13”), Folio (8.25” x 13”), F (8” x 13”), A4 (210 x 297 mm), A5 (148 x 210 mm), A6 (105 x 148 mm), B5 (148 x 257 mm), B6 (128 x 182 mm)
    Envelopes: Com10/Monarch/C6/C5/DL
    Custom Size Range: Width: 2.5” – 8.5” (64 – 216 mm), Length: 4.9” – 49.6” (125 – 1260 mm)
    Optional PFU: Letter (8.5” x 11”), A4 (210 x 297 mm)

    Acceptable Paper Weights   Standard Tray: 16 – 43 lb. Bond /90 lb. Index (60 – 163 g/m@sup2;)
    Bypass Tray: 16 – 59 lb. Bond/120 lb. Index (60 – 220 g/m²)
    Optional PFU: 16 – 28 lb. Bond (60 – 105 g/m²)
    Duplex: 16 – 24 lb. Bond (60 – 90 g/m²)

    Acceptable Paper Types   Standard Tray: Plain Paper, Middle Thick, Thick Paper, Thin Paper, Letterhead, Label Paper, Coated Paper (Glossy), Coated Paper (Matted), Special Paper, Preprinted Paper, Color Paper, Recycled Paper
    Optional Paper Feed Unit: Plain Paper, Middle Thick, Thick Paper, Thin Paper, Letterhead, Preprinted Paper, Color Paper, Recycled Paper
    Bypass Tray: Plain Paper, Middle Thick, Thick Paper, Thin Paper, Letterhead, Label Paper, Coated Paper (Glossy), Coated Paper (Glossy: Thick), Coated Paper (Matted), Coated Paper (Matted: Thick), Cardstock, Special Paper, Bond Paper, Preprinted Paper, Color Paper, Recycled Paper, Envelope

    Dimensions   15.8” x 18.9” x 15.2”
    (400 mm x 480 mm x 387 mm)

    Weight   63.9 lb. (29 kg)

    Warm-Up Time   20 sec. or less

    Power Source   120V, 60Hz

    Power Consumption   Maximum: 1300W or less Energy Saver: 5.5W or less

    Safety Regulations   UL60950-1, 2nd Edition, CAN/CSA C22.2 No.60950-1 (c-UL), FCC 47CFR Part 15 Subpart B (Class B), Energy Star 2.0 compliant


    Controller Specifications

    CPU   533 MHz

    Printer Languages/Drivers   PCL 5c/6, XPS, PostScript 3 emulation plus PDF Direct Print (optional)

    Fonts   45 PCL, 13 International, 80 PS3

    Memory (RAM)   384 MB standard/768 MB maximum

    Standard Interfaces   USB 2.0, 10/100Base-TX Ethernet, USB 2.0-Host

    Optional Interfaces   IEEE 1284/ECP Parallel, Gigabit Ethernet, IEEE 802.11a/g Wireless LAN

    Network Protocols   TCP/IP (IPv4, IPv6), AppleTalk, IPX/ SPX, IPsec

    Operating Systems   Windows 2000/XP/Vista/Server 2003/R2, Server 2008/R2, 7; Mac OS v.8.6 or later; Novell NetWare 6.5 or later; SAP R/3; Citrix Presentation Server; UNIX (Ricoh Filter Phase 11)


    Utilities

        Web Image Monitor
    @Remote Communication Gate S Pro
    Font Manager 2000
    Embedded Software Architecture (ESA)


    Security Features (Standard)

        Administrator Authentication (5 levels)
    User Authentication (5 types)
    SNMP v3, IPsec Communications
    128-bit SSL Print Job Data Encryption
    Address Book & Password Encryption
    500 User Codes
    User Lockout/Auto Logout/Menu Protection
    Locked Print
    DataOverwriteSecurity System (DOSS) plus HDD Data Encryption
    WPA (Wi-Fi Protect Access)
  • Accessories

    Controller Options

    80 GB Hard Disk Drive Type C320   Part # 406796

    IEEE 802.11a/g Wireless LAN Type L   Part # 403000

    512 MB Memory Type I   Part # 003905MIU

    VM Card Type O   Part # 406678

    256 MB Memory Type G   Part # 007094MIU

    IEEE 1284/ECP Parallel Type A   Part # 411699

    Gigabit Ethernet Board Type A   Part # 402547

    SD Card for NetWare Print Type F   Part # 406797


    Optional Accessories

    Paper Feed Unit Type TK1010   Part # 406019
    Paper Size: Letter (8.5” x 11”), A4 (8.3” x 11.7”)
    Paper Weight: 16 – 28 lb. Bond (60 – 105 g/m2)
    Capacity: 500 sheets
