SP C430DN

SP C430DN

Make ordinary documents look brilliant.

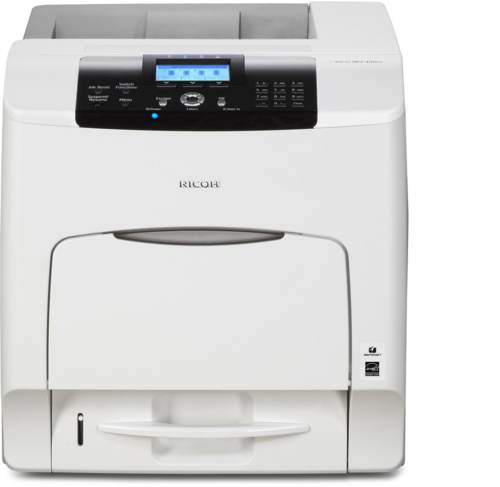

Invest in a business asset that will pay dividends for years to come. Spend your hard earned technology dollars wisely on the Ricoh Aficio SP C430DN Color Laser Printer. Solidly built for lasting value, this powerful yet easy-to-use network printer combines speed, reliability, and superior image quality with a broad range of media support. The Ricoh Aficio SP C430DN does it all at a low cost of ownership with security and cost-saving tools that make dynamic color accessible to every authorized user.
  • Colour
  • Print
  • Characteristics

    General Features

    • Offers full-color and monochrome print speeds of 37 pages per minute.
    • Rip through files faster with the high-performance 600MHz CPU and vast megabytes of memory. Get full-color first prints in as little as 15 seconds.
    • Maximize uptime and ease of use with long-lasting supplies designed for quick and clean replacement, plus an angled 4-line LCD that displays system and consumable status at a glance.
    • Produce vibrant color output and crisp text at true 1200 x 1200 dpi resolution for superior results.
    • Optimize output quality for every job with advanced color calibration, ink simulation, and PANTONE® color matching support.
    • Drive down printing costs with long-lasting supplies that yield up to 21,000 pages per color (CMY) toner bottle*. (* Toner yields in accordance with ISO/IEC 19798.)
    • Install up to three optional 550-Sheet Paper Feed Units for a maximum 2,300- sheet capacity. Keep up to 5 different media sizes/types available at all times for unmatched flexibility.
    • Adjust each paper tray for media sizes up to 8.5” x 14” with support for thick stocks up to 120 lb. Index. Duplex printing is supported up to 90 lb. Index.
    • Use the 100-Sheet Bypass Tray for extra heavy stocks up to 140 lb. Index and special media like static cling paper, waterproof/coated papers, and banners up to 8.5” x 49” long.



    Security Features

    • Restrict device access, set volume limits, and track printer usage for up to 500 individual users.
    • Use the 80 GB Hard Disk Drive (optional) to enable advanced features like Locked Print, Stored Print, and Hold Print.
  • Specifications

    General Specifications

    Configuration   Desktop

    Technology   Laser beam scanning & electrophotographic printing 4 drum tandem method

    Resolution   1200 x 1200 dpi (1 bit)

    Print Speed (Letter)   37-ppm Full-color & Monochrome

    First Print Speed   Full-color: 15 seconds Monochrome: 10 seconds

    Warm-Up Time   50 seconds or less

    Standard Paper Supply   550-Sheet Tray + 100-Sheet Bypass Tray

    Optional Paper Supply   550-Sheet Paper Feed Unit (Up to 3 may be installed)

    Maximum Paper Capacity   2,300 sheets

    Automatic Duplexing   Standard

    *Duplex output speeds run approximately 100% of the rated simplex speed for each paper size.

    Output Capacity   500 sheets, face down

    Paper Sizes   Std. & Optional Trays: Letter (8.5” x 11”), Legal (8.5” x 14”), Executive (10.5” x 7.25”), Half Letter (5.5” x 8.5”), A4 (210 x 297 mm), A5 (148 x 210 mm), A6 (105 x 148 mm), B5 (148 x 257 mm), B6 (128 x 182 mm), F (8” x 13”), Foolscap (8.5” x 13”), Folio (8.25” x 13”),Envelopes: Com10/Monarch/ C6/C5/DL, Custom Size Range: Width: 3.86” – 8.5” (98 – 216 mm), Length: 5.83” – 14” (148 – 356 mm)
    Bypass Tray Letter (8.5” x 11”), Legal (8.5” x 14”), Executive (10.5” x 7.25”), Half Letter (5.5” x 8.5”), A4 (210 x 297 mm), A5 (148 x 210 mm), A6 (105 x 148 mm), B5 (148 x 257 mm), B6 (128 x 182 mm), F (8” x 13”), Foolscap (8.5” x 13”), Folio (8.25” x 13”), Envelopes: Com10/Monarch/ C6/C5/DL, Custom Size Range: Width: 2.76” – 8.5” (70 – 216 mm), Length: 5.0” – 49.6” (127 – 1260 mm)

    Paper Types   Paper Types (all sources): Plain Paper, Recycled Paper, Middle Thick Paper, Thick Paper, Thin Paper, Transparency, Letterhead, Labels, Coated Paper (Glossy/Semi- Gloss/Matte), Waterproof, Preprinted, Envelopes

    Paper Weights   Std. & Optional Trays: 14 – 59 lb. Bond/120 lb. Index (52 – 220 g/m²)
    Bypass Tray: Bypass Tray 14 – 69 lb. Bond/140 lb. Index(52 – 256 g/m²)
    When Duplexing: 16 – 44 lb. Bond/90 lb. Index (60 – 163 g/m²)

    Note: Support for specialty media like Aqua Ace Waterproof media and static cling paper are available. Please check with your local dealer for availability.

    Dimensions (W x D x H)   17.48” x 25.91” x 19.29” (444 x 658 x 490 mm)

    Weight   126 lb. (57 kg) Includes standard paper tray and PCU

    Power Requirements   120 – 127V, 60Hz

    Power Consumption   Operating: 825W or less
    Energy Saver: 110W
    Sleep: 6W

    Safety Regulations   UL60950-1, CAN/CSA C22.2
    No.60950-1 (c-UL)

    EMI   FCC Part15 Subpart B, IC ES-003


    Print Controller Specifications

    CPU   600 MHz

    Memory   384 MB RAM standard, 768 MB RAM maximum

    Hard Disk Drive   80 GB (optional)

    Standard Interfaces   10/100Base-TX Ethernet, USB 2.0 (Type A & B)

    Optional Interfaces   IEEE 802.11a/g Wireless LAN, Gigabit Ethernet, IEEE 1284/ECP Parallel

    Fonts   PCL: 45 fonts + 13 International fonts, PostScript 3: 136 fonts

    Printer Languages   PCL 5c, PCL 6, Adobe PostScript 3 + PDF Direct Print, PictBridge (optional)

    Network Protocols   TCP/IP (IPv4, IPv6), AppleTalk, IPX/ SPX (optional)

    Supported Environments   Windows 2000, XP, Vista, 7*, Server 2003/2003R2, Server 2008; Mac OS 8.6 or later; Novell Netware v.6.5 or later; UNIX (Ricoh Filter Phase 11) Sun Solaris, HP-UX, SCO OpenServer, RedHat Linux, IBM AIX; SAP R/3 v.3.x or later; Citrix MetaFrame

    * Windows 7 is available for web download August, 2010.

    Security Features   Administrator Authentication
    (5 levels)
    User Authentication (5 types)
    SNMP v3 Authentication
    128-bit SSL Print Job Data
    Encryption
    500 User Codes
    User Lockout/Auto Logout
    Locked Print
    DataOverwriteSecurity System
    (DOSS) (option)
    HDD Data Encryption (option)
    Address Book & Password
    Encryption
    WPA (Wi-Fi Protect Access)

    * Security features may require 80 GB Hard Disk Drive (optional on SP C430DN) and other optional equipment





  • Accessories

    Controller Options

    HDD Encryption Unit (Type D)   Part # 403113

    SD Card for Netware Printing (Type D)   Part # 406688

    256 MB RAM DIMM (Type G)   Part # 414046

    (VM Card (Type O)   Part # 406678

    IEEE 802.11a/g Wireless LAN (Type L)   Part # 403000

    Gigabit Ethernet (Type A)   Part # 402547

    IEEE 1284/ECP Parallel (Type A)   Part # 411699

    Camera Direct Print Card (Type H)   Part # 406676

    HDD Data Overwrite Security (Type K)   Part # 402998


    Hardware Options

    Paper Feed Unit (PB1020)   Part # 406681

    Paper Size   Letter, Legal, Executive, Half letter, A4, A5, A6, B5, B6, F, Foolscap, Folio, Envelopes: Com10/ Monarch/C6/C5/DL, Custom: width 3.86” – 8.5”, length 5.8” – 14”

    Paper Weights   14 – 59 lb. Bond /120 lb. Index (52 – 220 g/m²)

    Capacity   550 sheets; up to 3 units may be added

    Dimensions (WxDxH)   17.48” x 23.22” x 5.51” (444 x 590 x 140mm)

    Weight   26.46lb (12Kg)

    Tip-resistant Caster Table (Type C)*   Part # 406755

    *Installation requires the assistance of a technician.
    Dimensions (WxDxH)   23.39” x 24.23” x 5.04”
    (594 x 615.5 x 128mm )

    Weight   21.16lb (9.6Kg)


    Controller Options

    HDD Encryption Unit (Type D)   Part # 403113

    SD Card for Netware Printing (Type D)   Part # 406688

    256 MB RAM DIMM (Type G)   Part # 414046

    (VM Card (Type O)   Part # 406678

    IEEE 802.11a/g Wireless LAN (Type L)   Part # 403000

    Gigabit Ethernet (Type A)   Part # 402547

    IEEE 1284/ECP Parallel (Type A)   Part # 411699

    Camera Direct Print Card (Type H)   Part # 406676

    HDD Data Overwrite Security (Type K)   Part # 402998


    PANTONE® Support

        PANTONE Look-up Tables and Color Palettes will be available December, 2010.


    Warranty

        This product is under warranty against defects for a period of one year from the date of purchase. Consumables are under warranty for a period of 90 days from the date of purchase or until depleted, whichever comes first. Please refer to warranty documents shipped with the product for more details.
