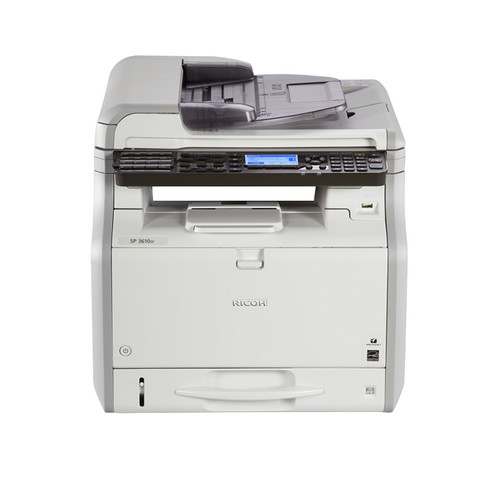

SP 3610SF
Meet your match: big printing, small office
|
|
The compact RICOH SP 3610SF monochrome MFP provides innovative LED print technology that raises print quality and lowers cost per page, while supporting the habits of your mobile workers. |
- Copy
- Scan
- Fax
-
Characteristics
General Features
- Print from mobile devices
If you think mobile printing has to be complicated, think again. The RICOH SP 3610SF allows your workers to print and share images, documents and photographs using the RICOH Smart Device Print&Scan app from their iPhones, iPads or Android smart phones or tablets — without the hassle of print drivers.
- Simplify how you work
Use the four-line LCD panel to check system status at a glance and speed through functions. For example, you can copy both sides of an ID or small document onto a single sheet of paper just by clicking on the preset ID Card Copy button.
- Let those file cabinets go
Digital files are a lot easier to store, access and share than hardcopies, so make it happen with the color scanner. Scan all of your information, from expense reports to articles, and send it to folders, email, FTP sites and directly into applications (TWAIN). Watch your productivity and popularity rise because people can now receive information in the format they prefer.
- Earn kudos for print quality
Make every print job — even banners up to 35 inches long — look better by maintaining precise, sharp 1,200 dpi resolution, even when printing up to 31 ppm. Ricoh is leading the way with innovative LED print technology, which also keeps your cost per page very low.
- Fax sensitive information in seconds
Instead of using a courier service for sensitive information like employee records, prescriptions or legal documents, send it in seconds with Super Group 3 and LAN faxing capabilities.
- Monitor and manage devices easily
Access the drum and toner from the front of the device. Use Web Image Monitor, Device Manager NX or @Remote to check settings, manage queues, and complete maintenance tasks from your desktop.
- Do more for the environment
With standard duplex printing, you can use less paper. Double down again with the printer's EPEAT® Silver rating (EPEAT is a global environmental rating system for electronic products) and ENERGY STAR® certification. And, you can easily recycle toner cartridges and containers.
- Print from mobile devices
-
Specifications
Engine Specification
Ricoh SP 3600SF/SP 3610SF Part # 407307/407305 Configuration Desktop Technology LED Color/B&W Black & White Printing Process Electro-photographic printing Toner Type Dry, single component Black & White Speed 31 ppm Maximum Monthly Volume Up to 6,000 prints Maximum Duty Cycle 50,000 prints First Page Out Time 6.5 seconds Warm-Up Time 14 seconds Recovery from Sleep Mode 10 seconds or less Supported Paper Sizes Paper Tray: 3.93" x 5.82" – 8.46" x 14.0" (100 x 148 – 216 x 356mm)
Bypass Tray: 2.36" x 8.5 – 5.0" x 35.43" (60 x 127 – 216 x 900mm)Supported Paper Weights All Trays: 14 – 43 lb. Bond/90 lb. Index (52 – 162 g/m2)
Duplex: 14-43 lb. Bond/90 lb. Index (52 – 162 g/m2)Supported Paper Types All Trays: 14 – 43 lb. Bond/90 lb. Index (52 – 162 g/m2) Duplex: 14-43 lb. Bond/90 lb. Index (52 – 162 g/m2) Duplexing Automatic (standard) Dimensions (W x D x H) 15.8" x 15.4" x 16" (400 x 392 x 268 mm) Weight 41.89 lbs. (19 kg) Power Consumption (Operating) 471.8W Power Consumption (Sleep Mode) Less than 1W Typical Energy Consumption (TEC) 1.5 kWh/week Power Requirements 120V, 60Hz, 10A EPEAT status Silver(applicable only in the US) Copy Specifications
Copy Resolution Up to 600 x 600 dpi Document Feeder Type Single Pass Duplex Feeder (SPDF) Document Feeder Capacity 35 sheets Document Feeder Original Size 8.5" × 14" – 5.5" × 8.5" (A4 – A5), Custom: up to 8.5" x 35.4" Document Feeder Paper Weight Simplex: 14 – 34 lb. Bond (52 – 128 g/m2) Maximum Original Size Exposure glass: up to 8.5" × 11.7"" (216 × 297mm) ADF/SPDF: One-sided originals: 8.5" x 35.4" (216 × 600mm), Two-sided originals: 8.5" x 14" (216 × 356mm) Maximum Copy Quantity 99 copies Preset Reduction and Enlargement Ratios 65%, 78%, 93%, 129%, 155% Zoom Range 25% to 400% in 1% increments Copier Features
--- ID Card Copy, Manual Density Adjustment (5 levels); Image Quality Mode – Text, Text/Photo and Photo, Memory Copy, Duplex Copy, Combine Copy, Auto Paper Selection, Directional Magnification, Auto Start, User Program, Electronic Sorting, Image Rotation, Series Copy Print Specifications
Processor Speed 500 MHz Memory (Standard/Maximum) 512MB/512 MB Print Resolution Up to 1200 x 1200 dpi Printer Languages PCL6/5e, Adobe ®PostScript®3™ Connection Type Standard: Ethernet (100/10BASE-T), USB 2.0; USB 2.0 Host (SP 3600SF/SP 3610SF only); Optional: IEEE802.11b/g/n (SP 3600SF/ SP 3610SF only) Font Support PCL6: 45 fonts, PCL5: 45 fonts + International fonts 13 fonts, PostScript3: 136 fonts Network Protocols TCP/IP (IPv4, IPv6) Supported Operating Systems Windows XP/Vista/7/8/8.1, Windows Server 2003/2003 R2/2008/2008 R2/2012/2012 R2, MacOS (X10.6 – 10.9) or later Device Management Utilities @Remote, SmartDeviceMonitor, Device Manager NX, Web SmartDeviceMonitor, Web Image Monitor Mobile Printing Support Smart Device Print & Scan App Other Print Features
--- Reduce/Enlarge, Collate, Layout (N-up), Duplex, Toner Saving, Watermark, Rotate Print, Support for Universal Driver Controller Options
IEEE802.11 Interface Unit Type P6 Part # 407566 Scan Specifications
Scanning Modes CIS Scanner Resolution Color and B&W: up to 600 dpi Platen Size Up to 8.5" x 11" Maximum Scanning Size Up to 8.5" x 14" Scan Modes Text, Text/Photo, Grayscale File Formats JPEG, Single/Multi Page TIFF, Single/Multi Page PDF Scan-to modes Scan-to-Email (with LDAP support); Scan-to-Folder (SMB/FTP); Netowkr TWAIN, Scan-to-Media (USB) Scan Protocols Network: TCP/IP; Email: SMTP, POP 3; Scan-to-Folder: SMB, FTP Facsimile Specifications
Fax Resolution Up to 200 dpi Fax Scanning Speed (ADF/SPDF) 20 spm (Letter) Modem Speed 33.6 kbps with auto fallback Compression Method MH, MR, MMR SAF Memory 16 MB (approximately 100 sheets) Transmission Speed G3: 3 seconds per page Quick Dials 32 locations Standard Fax Features Redial (Automatic/Manual), Page Counter, Auto Reduction, Memory Lock ID Code, Energy Saver, Immediate/Parallel/Memory Transmission, Serial Broadcasting, Auto/Manual/Substitute/Duplex Reception, LAN Fax Security Features
--- Security via TCP/IP Access Control, Network Encrypted communications using SSL/TLS, SMNPv1, SMNPv2, IPsec, Wireless LAN Security (WEP, WPA2/ WPA2-PSK) -
Accessories
Paper Feed Unit PB1060 Part # 407230
Paper Capacity 250 sheets Supported Paper Sizes 3.93" x 8.46" – 8.46" x 14.0" Supported Paper Weight 14 – 43 lb. Bond/90 lb. Index (52 – 162 g/m2) Dimensions (W x D x H) 14.6" x 15.4" x 3.7" (370 x 392 x 95mm) Weight 9.04 lbs. (4.1 kg) Paper Feed Unit PB1070 Part # 407229
Paper Capacity 500 sheets Supported Paper Sizes 3.93" x 8.46" – 8.46" x 14.0" Supported Paper Weight 14 – 43 lb. Bond/90 lb. Index (52 – 162 g/m2) Dimensions (W x D x H) 14.6" x 15.4" x 4.9" (370 x 392 x 125mm) Weight 9.92 lbs. (4.5 kg) Adjustable Height Cabinet Type G Part# 161200
-- Supports all paper tray configurations Dimensions (W x D x H) 17.8" x 19.4" x 21.7" (453 x 491.5 x 552mm) Weight 42 lbs. Consumables and Yields
Print Cartridge SP 4500 Part # 407319
6,000 pages*Print Cartridge SP 4500LA Part # 407321
3,000 pages*Maintenance Kit SP 3600 Part # 407327
120,000 pages
* Declared yield values in accordance with ISO/IEC 19752. Actual yields may vary based on images printed and other factors.
The Ricoh SP 3600DN/SP 3600SF/SP 3610SF ships with starter toner that yields 1,500 pages (ISO/IEC 19752).
For maximum performance and yield we recommend using genuine Ricoh parts and supplies.Warranty
-- The Ricoh SP 3600DN, SP 3600SF/SP 3610SF are under warranty against defects for a period of one year from the date of purchase. Consumables are under warranty for a period of 90 days from the date of purchase or until depleted, whichever comes first. Please refer to warranty documents shipped with the product for more details.
