SP 4510SF

Home Equipment Multifunction B & W

SP 4510SF


Tackle big document tasks in small spaces.

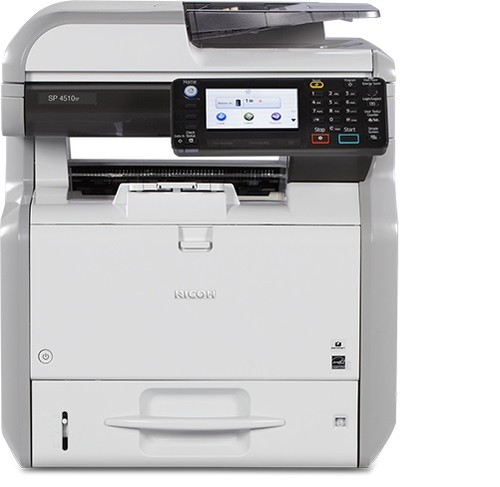

Help your workers manage and share information at high speed with the RICOH SP 4510SF, a compact monochrome MFP that copies, prints, scans and faxes.
  • Copy
  • Print
  • Scan
  • Fax
  • Characteristics

    General Features

    • Tackle big tasks in small spaces
      Even if your office runs on a tight budget and limited space, you can still make it easy for your workers to speed through copying, printing, scanning and faxing tasks to put information into the hands of those who need it. The compact RICOH SP 4510SF fits nearly anywhere, even on a desktop, and it raises the quality bar with 1,200 crisp dots per inch and a speed of up to 42 pages per minute.
    • Share information at the speed of your business
      Make decisions quickly and move on to the next task:
      • Share documents with scan-to-email, folder, URL, USB device or SD card.
      • Create searchable PDFs when you scan using the optical character reader (OCR) option.
      • Scan two-sided documents like IDs and patient insurance cards onto a single sheet of paper.
    • Conserve energy and the environment
      The RICOH SP 4510DN’s energy-efficiency credentials include EPEAT® Silver (EPEAT is a global environmental rating system for electronic products) and ENERGY STAR® specifications. The device's automatic startup and shutdown conserve energy when you’re out of the office. And, you can easily recycle toner cartridges and containers.
    • Resist prying eyes
      When dealing with sensitive information, set up user authentication controls — a card swipe or login and password entry at the device to release documents. Embedded encryption helps to protect images and data on the hard drive.
    • Work the way you want to work
      Save time by customizing device controls with shortcuts. They're easy to set up on the 4.3" color touch panel home screen. Need to work on the go? Bring your work with you on a USB stick or SD card. Or, use your smart phone or tablet for mobile printing.
    • Work in the cloud
      The optional Integrated Cloud Environment (ICE) service from Ricoh lets you print from or scan to apps like DocumentMall™, Evernote™, Dropbox™ or Google Drive™ without expensive on-site servers, system integration or software updates.
  • Specifications

    Engine Specifications

    SP 4510SF   Part# 407302

    Configuration   Desktop

    Technology   LED

    Color and Monochrome   Black & White

    Printing Process   Electro-photographic printing

    Scanning Element   CCD

    Toner Type   Dry, single component

    Black & White Speed   42 ppm

    Maximum Monthly Volume   10,000 prints

    Maximum Duty Cycle   150,000 prints

    First Page Out Time   5.1 seconds

    Warm-Up Time   14 seconds

    Standard Paper Capacity   1 x 500-Sheet Tray + 100-Sheet Bypass Tray

    Maximum Paper Capacity   1,600 sheets

    Standard Output Capacity   250 sheets

    Supported Paper Sizes   Paper Tray: 3.94" x 5.82" – 8.5" x 14" (100 x 148 – 216 x 356 mm)
    Bypass Tray: 2.37" x 5.0" – 8.5" x 35.43" (60 x 127 – 216 x 900 mm)

    Supported Paper Weight   All Trays: 14 – 43 lb. Bond/90 lb. Index (52 – 162 g/m2)
    Duplex: 14 – 43 lb. Bond/90 lb. Index (52 – 162 g/m2)

    Supported Paper Types   Plain, Recycled, Thick, OHP (Transparency), Letterhead, Preprinted and Envelopes

    Duplexing   Automatic (standard)

    Power Consumption   616 W

    Power Consumption Energy Saver Mode   Less than 1 W

    Typical Energy Consumption (TEC)   1.756 kWh/week

    Recovery from Sleep Mode   9.2 seconds

    Power Requirements   120 V, 60Hz, 10A

    Dimensions (W x D x H)   16.5" x 16.8" x 19" (419 x 427 x 484 mm)

    Weight   50.6 lbs. (23 kg)

    Energy Star   Certified

    Environment while operating   Silver


    Copy Specifications

    Copy Resolution   Up to 600 x 600 dpi

    Document Feeder Type   Automatic Reversing Document Feeder (ARDF)

    Document Feeder Capacity   50 sheets

    Document Feeder Original Size   8.5" × 14" – 5.5" × 8.5" (A4 – A6), Custom: up to 8.5" x 35.43"

    Document Feeder Paper Weight   Simplex: 14 – 34 lb. Bond (52 – 128 g/m2)
    Duplex: 16 – 28 lb. Bond (60 – 105 g/m2)

    Maximum Original Size   Exposure glass: 8.5" × 11.7" (216 × 297 mm)
    ADF: One-sided originals: 8.5" x 23.6" (216 × 600 mm), Two-sided originals: 8.5" x 14" (216 × 356 mm)

    Maximum Capacity   99 copies

    Preset Reduction and Enlargement Ratios   65%, 78%, 93%, 129%, 155%

    Zoom Range   25% to 400% in 1% increments


    Copier Features

    ---   ID Card Copy; Auto/Manual Density Control; Auto Start; Batch Mode; Mixed Size Originals; Copy Mode – Text, Text/Photo and Photo, Generation Copy, Pale; Combine Pages; Margin Adjustment; Auto Tray Switching; Image Rotation; Electronic Sort; Job Program (25); User Codes (1,000)


    Print Specifications

    Processor Speed   533 MHz

    Memory (Standard/Maximum)   512 MB/1 GB RAM

    Hard Disk Drive   320 GB (optional)

    Max. Stored Documents   950 files (HDD required)

    Max. Stored Pages   9,000 pages (HDD required)

    Connection Type   Standard: Gigabit Ethernet (1000/100/ 10BASE-T), USB 2.0, USB 2.0 Host Optional: IEEE1284, IEEE802.11a/b/g/n

    Printer Language   Standard: PCL6/5e, Adobe® PostScript®3™, PDF Direct Optional: IPDS*, XPS

    Font Support   PCL6: 45 fonts, PCL5: 45 fonts + International fonts 13 fonts, PostScript3: 136 fonts, IPDS: 108 fonts (optional)

    Network Protocol   TCP/IP (IPv4, IPv6)

    Supported Operating Systems   Web SmartDeviceMonitor
    SmartWindows XP/Vista /7/8/8.1/Server2003/ 2008/2008R2/2012/2012R2, MacOS (X10.5 or later) PS only; UNIX filters for Sun Solaris, HP-UX, Red Hat Linux, SCO OpenServer, IBM AIX; SAP R/3; Citrix Presentation Server 4.5/Citrix XenApp 5.0, 6.0, 6.5; IBM iSeries/ AS/400®**DeviceMonitor for Admin
    DeskTopBinder Lite

    Device Management Utilities   @Remote, SmartDeviceMonitor, Device Manager NX, Web SmartDeviceMonitor, Web Image Monitor

    *Hard disk drive and optional memory required.
    **IPDS option required.

    Mobile Printing Support   Smart Device Print & Scan App


    Other Print Features

    ---   Scheduled Print*, Auto Continue, Store and Skip Errored Job, Classification Code, PDF Direct Print, Sample/Hold/Stored and Locked Print*, WSD Printer, Unauthorized Copy Prevention, Poster Print, Collate, Toner Saving Mode

    *Hard disk drive required.


    Scan Specifications

    Scanner Resolution   Color and B&W: up to 600 dpi
    TWAIN: up to 1200 dpi

    Scanning Speed (Letter/A4)   B&W: up to 32 ipm, Color: up to 31 ipm

    Platen Size   Up to 8.5" x 11" (216 x 297 mm)

    Maximum Scan Area   Up to 8.5" x 23.6" (216 x 600 mm)

    Scan Mode   Text, Text/Line Art, Text/Photo, Photo, Glossy Photo Color (26 bit), Gray Scale (8 bit)

    File Formats   JPEG, Single/Multi Page TIFF, PDF, High Compression PDF, PDF/A; OCR*

    Scan-to modes   Scan-to-Email (with LDAP support);
    Scan-to-Folder (SMB/FTP); Scan-to-URL;
    Network TWAIN, Scan-to-Media (USB/SD);
    WSD Scanner

    Scan Protocols   Network: TCP/IP; Email: SMTP, POP3, IMAP4; Scan-to-Folder: SMB, FTP, WSD Scanner

    *OCR option required.


    Document Server Specifications*

    Capacity   38 GB (shared with other functions)

    Max. Stored Documents   3,000 documents

    Maximum Pages (per document)   1,000 pages

    Maximum Pages (all stored documents)   9,000 pages

    *Hard disk drive required.


    Facsimile Specifications

    Fax Resolution   Up to 200 dpi

    Scanning Speed (via ARDF)   22-spm (Letter)

    Modem Speed   33.6 kbps with auto fallback

    Compression Method   MH, MR, MMR, JBIG

    SAF Memory   4 MB (approximately 320 sheets)

    Transmission Speed   G3: 2 seconds per page (JBIG Compression)

    Quick Dials   1,000 standard, 2,000 with HDD

    Standard Features   Dual Access, Duplex Reception, 12-Hour Backup, LAN-Fax, Internet Fax (T.37), IP Fax (T.38), Fax Forwarding to E-Mail/HDD/Folder, PSTN, PBX


    Security Features

    ---   Administrator and User Authentication*, User Lockout, Auto Logout, Menu Protect, Data Encryption (Address Book/User Authentication Information/Job Logs/Temporary Stored Document/Network Interface Settings/System Settings), Network Security via TCP/IP Access Control, Encrypted communications using SSL/TLS, IPsec, or IEEE 802.1X; SMNPv3, IPP Authentication, Kerberos Authentication Encryption, Wireless LAN Security (WEP, WPA2/ WPA2-PSK), Protect document data with Locked* and Stored Print*, Unauthorized Copy Prevention, Compulsory Security Stamp, HDD Data Overwrite* and Encryption*

    *Hard disk drive required.
  • Accessories

    Warranty

    Ricoh SP 4510SF   The Ricoh SP 4510SF is under warranty against defects for a period of one year from the date of purchase. Consumables are under warranty for a period of 90 days from the date of purchase or until depleted, whichever comes first. Please refer to warranty documents shipped with the product for more details.


    Controller Options

    Hard Disk Drive Option Type M6   Part # MX407348RA

    Memory Unit Type M 1.5 GB   Part # 007167MIU

    OCR Unit Type M2   Part # 416605

    Browser Unit Type M6   Part # 407225

    File Format Converter Type E   Part # 414007

    XPS Direct Print Option Type M6   Part # 407343

    VM Card Type W   Part # 407218

    IEEE802.11a/b/g/n Interface Unit Type O   Part # 407113

    IEEE 1284 Interface Board Type A   Part # 411699

    Copy Data Security Unit Type G   Part # 416391

    Optional Counter Interface Unit Type A   Part # 413012


    Hardware Options

    Paper Feed Unit PB1060   Part # 407230
    Paper Capacity - 250 sheets
    Supported Paper Sizes - 3.94" x 5.82" – 8.5" x 14" (100 x 148 – 216 x 356 mm)
    Supported Paper Weight - 14 – 43 lb.
    Bond/90 lb. Index (52 – 162 g/m2)
    Dimensions (WxDxH) - 14.6" x 15.4" x 3.7" (370 x 392 x 95 mm)
    Weight - 9.04 lbs. (4.1 kg)

    Paper Feed Unit PB1070   Part # 407229
    Paper Capacity - 500 sheets
    Supported Paper Sizes - 3.94" x 5.82" – 8.5" x 14" (100 x 148 – 216 x 356 mm)
    Supported Paper Weight - 14 – 43 lb.
    Bond/90 lb. Index (52 – 162 g/m2)
    Dimensions (WxDxH) - 14.6" x 15.4" x 4.9" (370 x 392 x 125 mm)
    Weight - 9.92 lbs. (4.5 kg)

    Adjustable Height Cabinet Type G   Part # 161200 - Supports all SP 4510SF configurations
    Dimensions (WxDxH) - 17.8" x 19.4" x 21.7" (453 x 491.5 x 552 mm)
    Weight - 42 lbs.
