SP C252SF

Home Equipment Multifunction Color

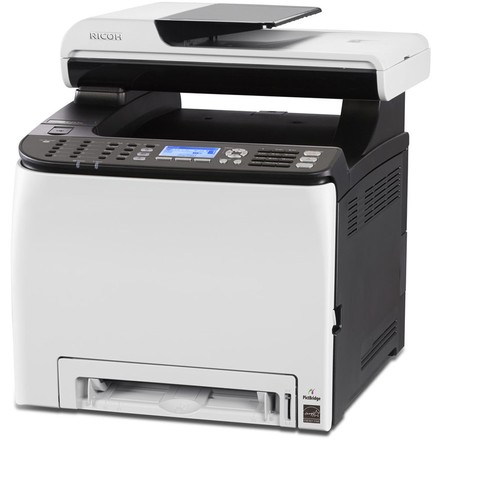

SP C252SF

Powerful Multifunction Capabilities with the Freedom of Wireless Connectivity


As business moves faster, we’re all using mobile devices to keep pace — changing how we work, and in many cases, where we work. Ricoh continues to do its part, with new innovations offering more freedom and agility, so you can perform more everyday tasks in less time. The RICOH® SP C252SF Color Laser MFP offers standard wireless printing and mobile printing capabilities so you can access information where you need it, when you need it. Need to share documents quickly with coworkers and customers? The SP C252SF offers Print/Scan/Copy/Fax functionality plus cost-free document distribution capabilities with scan-to-email/FTP/Folder and more. Tight on space? The SP C252SF is small enough to fit in cramped spaces, making it convenient for smaller offices. You can even include it as part of a Ricoh Managed Document Services (MDS) strategy and measure how much time and money the SP C252DN can save for your organization.
  • Colour
  • Copy
  • Print
  • Scan
  • Fax
  • Characteristics

    General Features

    • Move from job to job quickly with print and copy speeds up to 21 pages-per-minute for both full-color and black-and-white documents.
    • Expedite printing and manage multiple jobs easily with a powerful 400 MHz controller and 256MB RAM.
    • Versatile Connectivity with Standard Wireless, Ethernet and USB networking
    • Print from your tablet or Smartphone with the Ricoh Smart Device Print & Scan App
    • Support a variety of network environments with PCL and PostScript 3 emulation including both Windows and Macintosh network environments, IPv6 and Bonjour applications and Citrix MetaFrame distributed print environments.
    • Capture, edit and send information instantly and cost-free. A full suite of Scan-To document distribution capabilities allows users to leverage existing infrastructure to improve document-related processes.
    • Send faxes anywhere at the fastest available speeds with a 33.6 Kbps Super G3 Modem, built-in desktop PC faxing, Internet fax, 200 speed dials, authorized and paperless fax reception and more.
    • Share information easily with a strategically placed USB port located on the front of the system. This gives users advanced Scan-to-USB functionality and convenient access for printing images from a digital camera using PictBridge™ software.
    • Enjoy near-instant readiness with first print speeds of less than 14 seconds and a warm-up time of less than 30 seconds.
    • Replace the standard yield All-In-One print cartridges in seconds with a convenient top-loading design.
    • Create high-quality color business documents. True 600 x 600 dpi and interpolated resolutions up to 2,400 x 600 dpi meet even the highest image quality demands.
    • Economy Color Mode produces lower density prints for internal/draft documents with up to 50% the CPP of full-color prints
    • Capture true quality with full-color and monochrome TWAIN/WIA scanning at up to 1,200 x 1,200 dpi optical resolution and 19,200 x 19,200 dpi driver resolution.
    • Accommodate more media with thick paper support up to 42 lb. Bond/83 lb. Index— for sizes up to 8.5" x 14"—from both the Standard and Bypass Trays.
    • Add paper without increasing the footprint. An optional 500-sheet Paper Feed Unit can be installed beneath the MFP to bring system capacity to 751 sheets and offer instant access to letter- and legal-size sheets.
    • Enhance workflow with the standard 35-sheet Automatic Document Feeder. Users can scan originals as large as 8.5" x 14" without placing it on the platen glass to expedite multi-page copying, scanning and faxing.
    • Minimize filing space, postage costs and paper waste with standard automatic duplex printing.
    • Protect information—and your budget. Access to system functions and page volume limits can be set with User Restriction controls. Using Locked Print can help secure confidential information.
    • Monitor the system in real-time, remotely. Web Image Monitor offers immediate access to supply status and print network settings.
  • Specifications

    General Specifications

    SP C252SF   Part # 407525

    Configuration   Desktop

    Imaging Process   Laser beam scanning, color electrophotographic printing with monocomponent toner development 4-drum tandem method

    Scanning Element   Flatbed scanner with full color contact image sensor (CIS)

    Print Resolution   600 x 600 dpi (Default) (Speed Mode)
    1200 x 600 dpi equivalent (Standard Mode)
    2400 x 600 dpi equivalent (Fine Mode)

    Print Speed (Letter)   21 ppm B&W and Full-Color; 12 ppm duplex

    First Print Speed   14 seconds or less

    Warm-Up Time   30 seconds or less (from Energy Saver Mode)

    Operating Systems   Windows XP/Vista/7/8/Server 2003/2003R2/ 2008/2008R2/2012 (32 bit/64 bit) and later; Mac OS X 10.6 and later; Citrix MetaFrame

    Software Utilities   Web Image Monitor, @Remote Office Appliance, @Remote Enterprise Pro On-Site, @Remote Enterprise Pro Connector Option, Device Manager NX Lite, Printer Driver Packager NX, Web Based Driver Installer (WBDI)

    Standard Paper Capacity   250-sheet Paper Tray + 1-sheet Bypass Tray

    Optional Paper Capacity   500-sheet Paper Feed Unit

    Maximum Input   751 sheets

    Output Capacity   150 sheets (face down)

    Automatic Duplexing   Standard

    Paper Sizes   Standard Tray and Bypass Tray: Letter (8.5" x 11"), Legal (8.5" x 14"), EXEC (10.5" x 7.25"), Half Letter (5.5" x 8.5"), A4 (8.3" x 11.7"), A5 (5.8" x 8.3"), A6 (4.1" x 5.8"), B5 JIS (7.2" x 10.1"), B6 JIS (5.0" x 7.2"), F (8" x 13"), Foolscap (8.5" x 13"), Folio (8.25" x 13"), 16 Kai (7.6" x 10.5")
    Envelopes: Com10, Monarch, C5, C6, DL
    Custom size: Min. 90 mm x 148 mm (3.54" x 5.83"), Max. 216 mm x 356 mm (8.5" x 14.0")
    Optional Paper Feed Unit: Letter (8.5" x 11"), A4 (8.3" x 11.7")

    Paper Weight   Standard Tray and Bypass Tray: 16 – 42 lb. Bond/83 lb. Index (60 – 160 g/m2)
    Duplex: 16 – 24 lb. Bond (60 – 90 g/m2)
    Optional Paper Feed Unit: 16 – 28 lb. Bond (60 – 105 g/m2)

    Acceptable Paper Types   Standard Tray and Bypass Tray: Plain Paper, Middle Thick, Recycle Paper, Envelopes, Thick Paper, Labels, Thin Paper, Color Paper, Prepunched Paper, Letterhead, Bond Paper, Card Stock and Preprinted Paper (Std. Tray only)
    Optional Paper Feed Unit: Plain Paper, Middle Thick, Recycle Paper, Thick Paper, Thin Paper, Color Paper, Preprinted Paper, Prepunched Paper and Letterhead

    Dimensions (W x D x H)   16.5" x 19.4" x 18.1" (420 x 493 x 460 mm)

    Weight   64 lb. (29 kg) (including consumables)

    Power Requirements   120V, 60Hz

    Max Power Consumption   1,300W or less

    Energy Saver Mode   2.4W

    TEC   1.48 kWh/week

    Safety Regulations   UL60950-1 2nd Edition; CAN/CSA C22.2 No. 60950-1 (c-UL)

    Environmental Standard   ENERGY STAR certified


    Printer Specifications

    CPU   400MHz

    Printer Languages/Drivers   PCL 5c, PCL 6, PostScript 3 emulation

    Fonts   PCL/PS: 80 fonts

    RAM Memory Capacity   256 MB RAM standard/maximum

    Interfaces   USB 2.0, 10/100Base-TX Ethernet, USB Host Interface for PictBridge™, IEEE 802.11 b/g/n (Hardwired and wireless Ethernet network connections cannot be active simultaneously)

    Network Protocols   TCP/IP (IPv4, IPv6), IPP, Bonjour

    Printer Features   Locked Print, Collate, Layout (N-up), Duplex, Front Cover Sheet, Economy Color, Watermark, User ID, User Code, Rotate Print, Ricoh Smart Device Print&Scan app (device must be set to [PCL 6 mode] > [Universal]), Dithering, Do Not Print Blank Pages, Reduce/Enlarge Print, Toner Saving


    Copier Specifications

    First Print Speed   20 seconds or less for both B&W and Full-Color

    Multiple Document/Single Copy Speed   20 cpm B&W/12 cpm Full-Color

    Copy Resolution   1200 x 1200 dpi (scanning)
    600 x 600 dpi (printing)

    Original Type   Sheet/Book/3D Objects

    Original Size   Up to 8.5" x 11" (Platen)
    Up to 8.5" x 14" (ADF)

    Quantity Indicator   1 – 99

    Zoom   25% – 400% in 1% increments Reduction Ratios: 50%, 65%, 78%, 93% Enlargement Ratios: 129%, 155%, 200%, 400%

    Copier Features   Image Density Adjustment (manual only: 5 levels)
    Copy Mode (Text/Photo/Mixed)
    Color Balance Adjustment
    Combine Copy (2-in-1, 4-in-1 via ADF only)
    Duplex Copy
    ID Card Copy (2 in 1)
    Memory Copy
    Photo Mode
    Electronic Sorting (collation, ADF only)


    Scanner Specifications

    Scan Modes   Full-Color, B&W, Grayscale

    Compression   B&W: TIFF (MH/MR/MMR), JPEG, PDF Color/Grayscale: JPEG, PDF

    File Format   Single/Multi-Page TIFF, Single/Multi-Page PDF, Single Page JPEG

    Scan Resolution   Up to 1200 x 1200 dpi (optical)
    Up to 19200 x 19200 dpi (interpolated)

    Scan Speed   B&W: Less than 5 seconds per page Grayscale: Less than 5 seconds per page Full-Color: Less than 10 seconds per page

    Scan Interface   USB 2.0, 10/100Base-TX Ethernet, IEEE 802.11 b/g/n

    Utilities & Drivers   TWAIN Driver, Presto! PageManager version 9.33

    Scanning Features   Image Density (adjustable with 5 steps), TWAIN/WIA; Scan-to-Email/Folder/FTP/USB


    Facsimile Specifications

    Circuit   PSTN, PBX

    Compatibility   Super G3

    Resolution   Standard Mode: 200 x 100 dpi
    Fine Mode: 200 x 200 dpi

    Compression Method   MH/MR/MMR/JBIG

    Scanning Speed   Less than 5 seconds per page (B&W)
    Less than 10 seconds per page (Full-Color)

    Modem Speed   33.6 Kbps with automatic fallback

    Transmission Speed   3 seconds per page (base on ITU-T Test Chart #1 in Standard mode)

    Memory Backup   No limit

    SAF Memory   2MB (Approx. 100 pages based on ITU-T Test
    Chart #1 in Standard mode)

    One-Touch/Speed Dials   20 locations/200 locations

    Facsimile Features   Auto Redial, Auto Answer (3 – 5 rings), Auto/Manual/Substitute/Authorized Reception, Answering Machine Interface (FAX/TAD), Error Correction Mode, User Codes, Memory/Immediate Transmission, Resolution Adjustment, Serial Broadcasting (100 locations), Smoothing, Night Timer, Internet Fax, LAN Fax, PC Fax (Windows only), Paperless Fax (Reception File Setting, Print Received File, Print Forward File, Notify Forward Status)
  • Accessories

    Hardware Accessories

    Paper Feed Unit Type TK1010   Part # 406019

    Capacity   500 sheets

    Acceptable Paper Size   Letter (8.5" x 11"), A4 (8.3" x 11.7")

    Acceptable Paper Weight   16 – 28 lb. Bond (60 – 105 g/m2)

    Dimensions (WxDxH)   16" x 18" x 5" (400 x 450 x 127mm)

    Weight   13.2 lb. (6 kg)




    Consumables

    Print Cartridge Black SP C252HA   6,500 pages* Part # 407653

    Print Cartridge Cyan SP C252HA   6,000 pages* Part # 407654

    Print Cartridge Magenta SP C252HA   6,000 pages* Part # 407655

    Print Cartridge Yellow SP C252HA   6,000 pages* Part # 407656

    Waste Toner Bottle Type 220   25,000 pages Part # 406043

    * Declared yield values in accordance with ISO/IEC 19798. Actual yields may vary based on types of images printed and other factors.
    The Ricoh SP C252SF ships with a set of four starter All-In-One print cartridges yielding 1,000 pages each. All other consumables ship at full yield.
    For maximum performance and yield, we recommend using genuine Ricoh parts and supplies.
    Specifications subject to change without notice.



    Warranty

    Ricoh SP C252SF   -

    The Ricoh SP C252SF is under warranty against defects for a period of one year from the date of purchase. Consumables are under warranty for a period of 90 days from the date of purchase or until depleted, whichever comes first. Please refer to warranty documents shipped with the product for more details.
